一、自建k8s集群

可参考本文：k8s双master双Node部署

或现有k8s集群也可

二、自建NFS

使k8s集群运行的deployment、pod可以持久化存储，例如jenkins连接信息、工作空间，重建pod也能恢复到上一个状态。

三、基于k8s搭建jenkins-master & agent

3.1 部署jenkins-master

3.1.1 创建svc

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: jenkins-master
  name: jenkins-master
  namespace: devops
spec:
  type: NodePort
  ports:
    - name: web
      port: 8080
      targetPort: 8080
      nodePort: 30080
    - name: slave
      port: 50000
      targetPort: 50000
      nodePort: 30081
  selector:
    k8s-app: jenkins-master

3.1.2 创建Role

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
 name: jenkins-master
 namespace: devops
rules:
 - apiGroups: [""]
   resources: ["pods","configmaps","namespaces"]
   verbs: ["create","delete","get","list","patch","update","watch"]
 - apiGroups: [""]
   resources: ["pods/exec"]
   verbs: ["create","delete","get","list","patch","update","watch"]
 - apiGroups: [""]
   resources: ["pods/log"]
   verbs: ["get","list","watch"]
 - apiGroups: [""]
   resources: ["secrets"]
   verbs: ["get"]

3.1.3 创建RoleBinding

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
 name: jenkins-master
 namespace: devops
roleRef:
 apiGroup: rbac.authorization.k8s.io
 kind: Role
 name: jenkins-master
subjects:
 - kind: ServiceAccount
   name: jenkins-master
   namespace: devops

3.1.4 创建pv

apiVersion: v1
kind: PersistentVolume
metadata:
  name: jenkins-master-pv
  labels:
    app: jenkins-master-storage
spec:
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteMany
  nfs:
    server: 172.16.10.130
    path: /data/nfs-data/jenkins-master
  persistentVolumeReclaimPolicy: Retain

3.1.5 创建pvc

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: jenkins-master-pvc
  namespace: devops
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 10Gi
  selector:
    matchLabels:
      app: jenkins-master-storage

3.1.6 创建deployment

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: jenkins-master
  name: jenkins-master
  namespace: devops
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: jenkins-master
  template:
    metadata:
      labels:
        k8s-app: jenkins-master
      namespace: devops
      name: jenkins-master
    spec:
      containers:
        - name: jenkins-master
          image: myharbor.com/jenkins/jenkins:latest
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 8080
              name: web
              protocol: TCP
            - containerPort: 50000
              name: agent
              protocol: TCP
          resources:
            limits:
              cpu: 1000m
              memory: 2Gi
            requests:
              cpu: 500m
              memory: 512Mi
          livenessProbe:
            httpGet:
              path: /login
              port: 8080
            initialDelaySeconds: 60
            timeoutSeconds: 5
            failureThreshold: 12
          readinessProbe:
            httpGet:
              path: /login
              port: 8080
            initialDelaySeconds: 60
            timeoutSeconds: 5
            failureThreshold: 12
          volumeMounts:
            - name: jenkins-home
              mountPath: /var/lib/jenkins
            - name: localtime
              mountPath: /etc/localtime
          env:
            - name: JENKINS_HOME
              value: /var/lib/jenkins
            - name: JENKINS_OPTS
              value: >
                --httpPort=8080
                -Dhudson.remoting.LiteRemoteChannel.disableXInstanceIdentity=true
            - name: JENKINS_SLAVE_AGENT_PORT
              value: "50000"
      volumes:
        - name: jenkins-home
          persistentVolumeClaim:
            claimName: jenkins-master-pvc
        - name: localtime
          hostPath:
            path: /etc/localtime
      serviceAccountName: jenkins-master

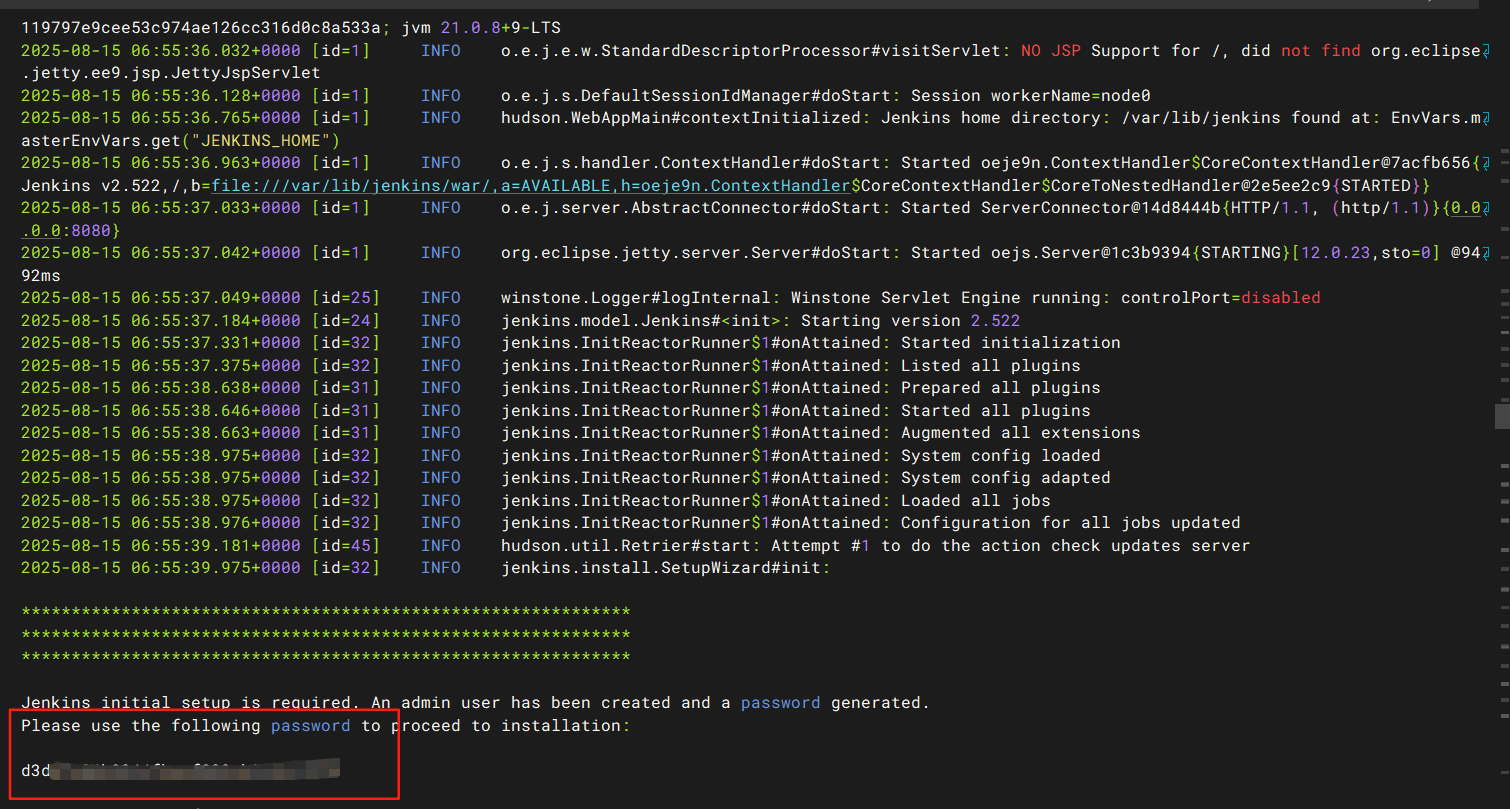

最后都应用完成后，查看jenkins的运行日志，包含首次登录jenkins的密码

四、创建jenkins动态slave（推荐）

4.1 创建cloud云平台

可以参考此博文配置cloud云平台

配置为实际参数即可，以下均已博文参数一致

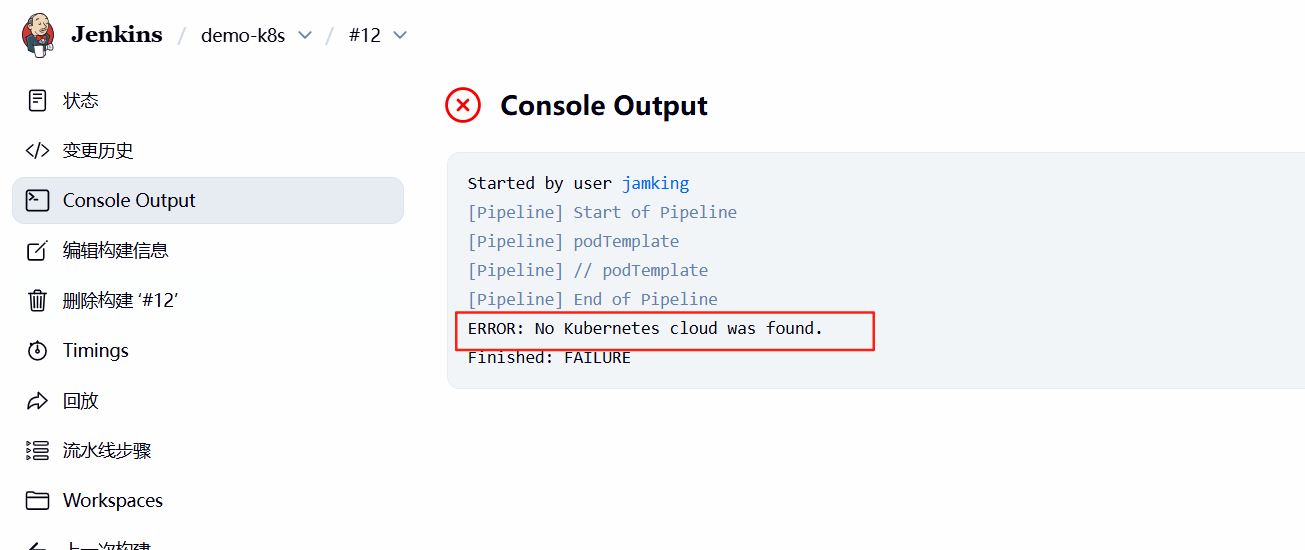

PS：不配置cloud，jenkins无连接k8s集群的方式，会报如下错误

4.2 通过pipeline创建动态slave

4.2.1 测试多层容器执行命令

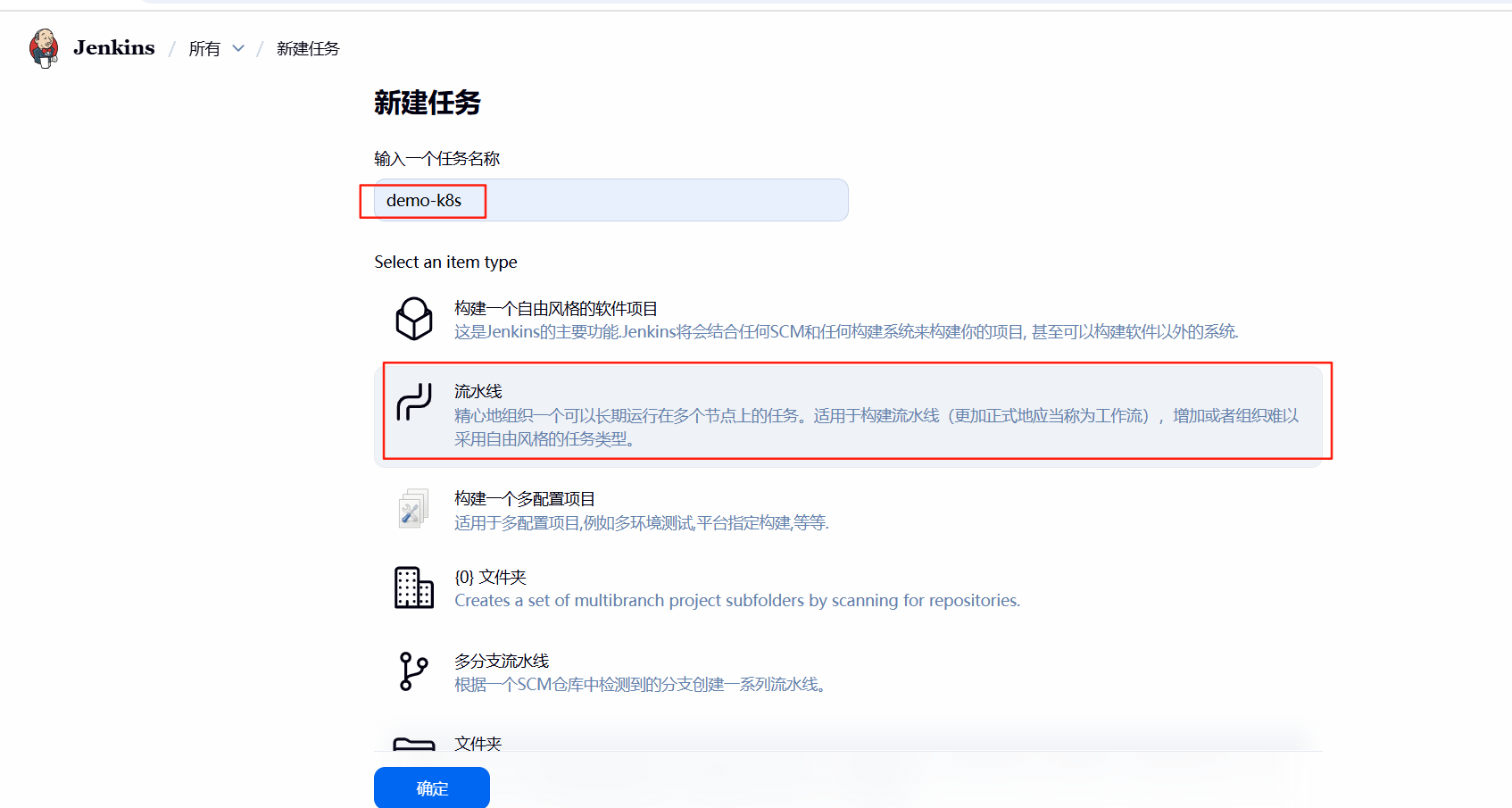

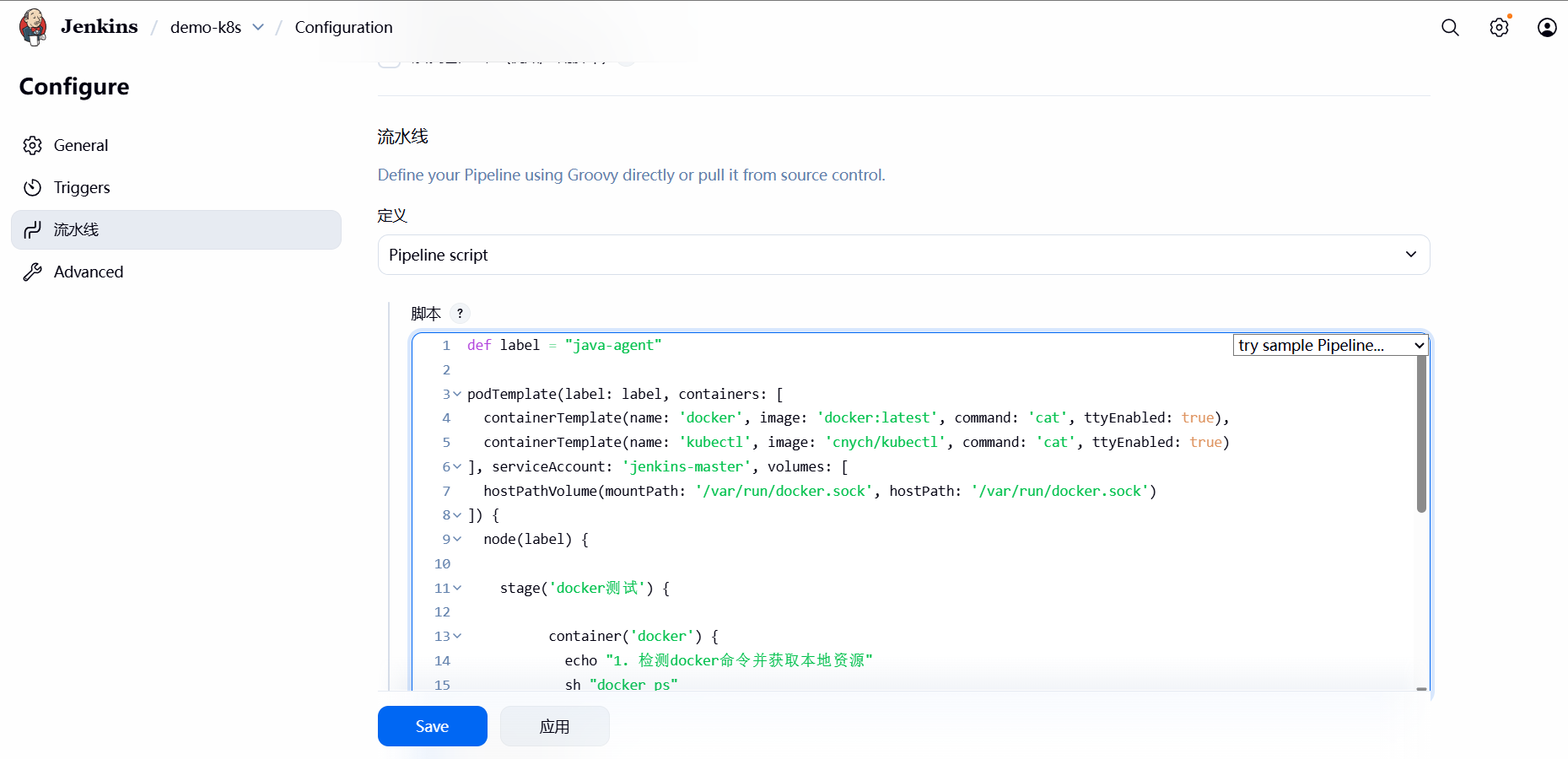

新建一个流水线demo

仅测试，内容只需要pipeline script，其他暂不用配置。Jenkinsfile定义了三个容器：jenkins/inbound-agent本身+docker+kubectl，所以运行pod模板，会包含三个容器

def label = "java-agent"

podTemplate(label: label, containers: [
  containerTemplate(name: 'docker', image: 'docker:latest', command: 'cat', ttyEnabled: true),
  containerTemplate(name: 'kubectl', image: 'cnych/kubectl', command: 'cat', ttyEnabled: true)
], serviceAccount: 'jenkins-master', volumes: [
  hostPathVolume(mountPath: '/var/run/docker.sock', hostPath: '/var/run/docker.sock')
]) {
  node(label) {

    stage('docker测试') {

          container('docker') {
            echo "1. 检测docker命令并获取本地资源"
            sh "docker ps"
          }
    }

    stage(' Kubectl测试') {
      withCredentials([file(credentialsId: 'kubeconfig', variable: 'KUBECONFIG')]) {
        container('kubectl') {
          echo "1.kubectl查看jenkins应用"
          sh 'kubectl --kubeconfig=$KUBECONFIG get pod -n devops'
        }
      }
    }
    stage('测试完成') {
          sh "echo 测试流程正常"
    }
  }
}

立即构建，随后会生成控制台日志，指引：运行流水线

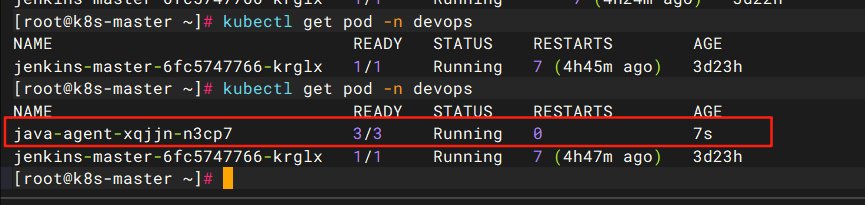

查看devops命名空间发现，动态slave已经生成，各容器执行每个阶段的命令

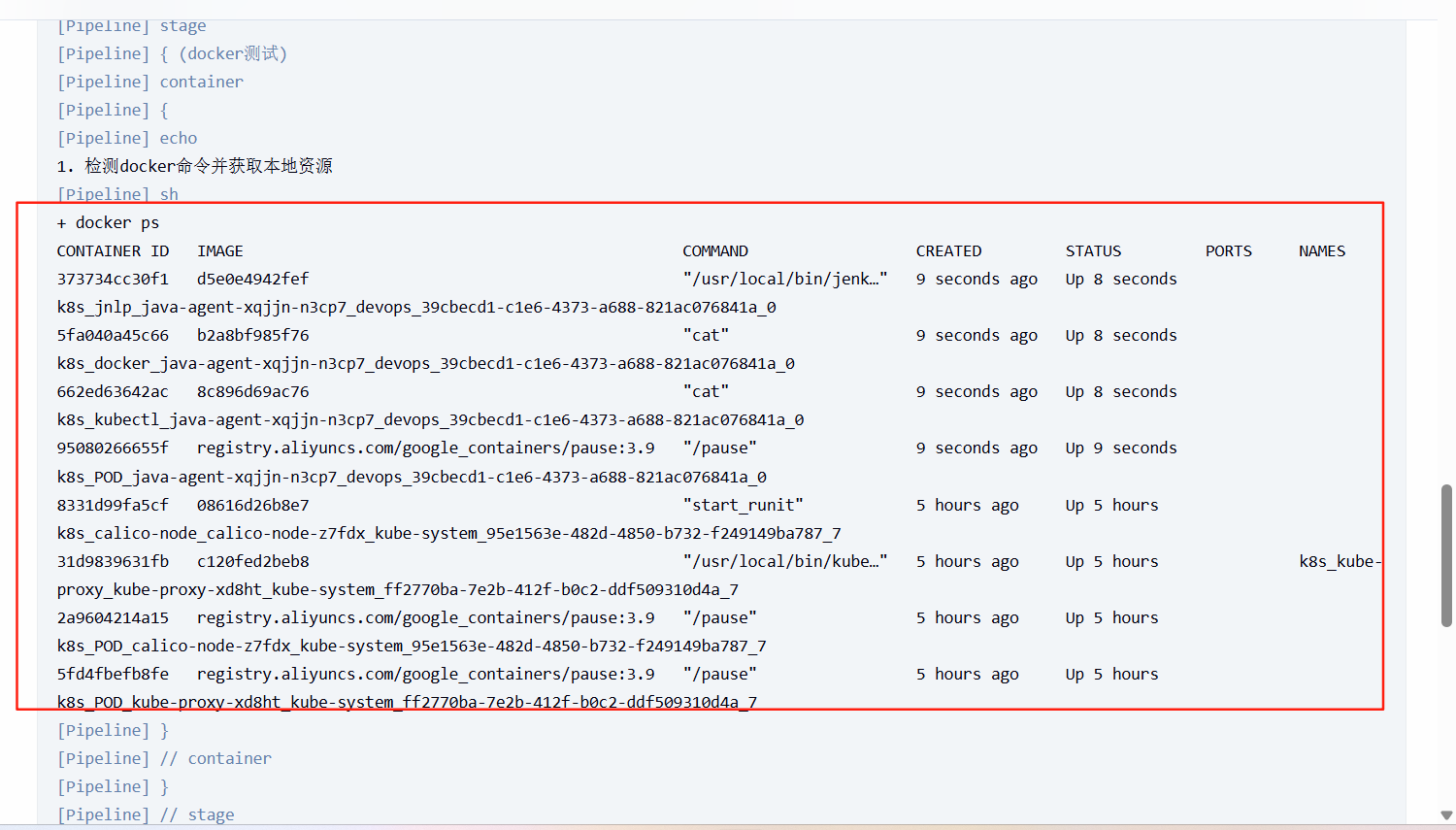

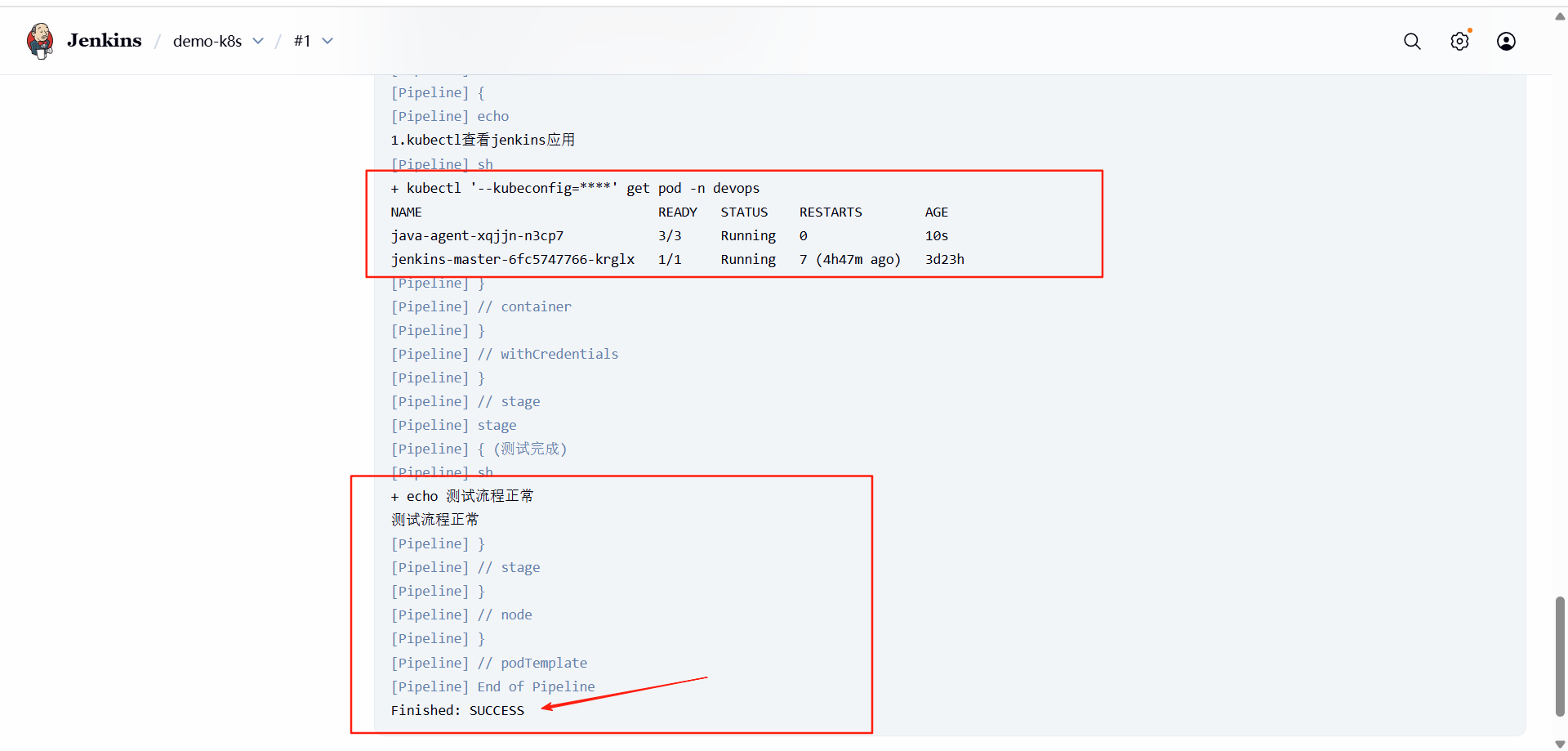

查看控制台日志，docker ps + kubectl --kubeconfig=${scret file} get pod -n devops。均成功运行

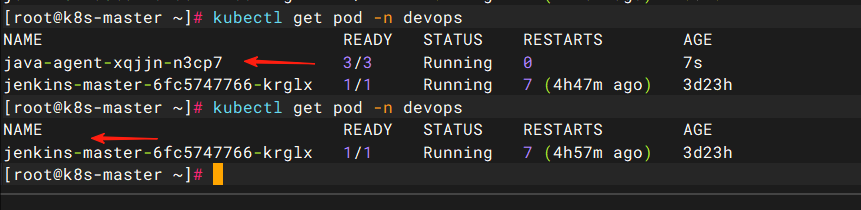

当流水线执行完之后，动态slave会自动删除

4.3 模拟测试环境自动化部署（devops）

4.3.1 部署需求

开始 >>拉取java代码 >> mvn编译可运行jar >> docker构建jar镜像 >> 推送镜像至harbor仓库 >> kubectl一键部署应用 >> 结束

4.3.2 Jenkinsfile内容

官方推荐使用Pipeline script from SCM，需要把Jenkinsfile整合到gitlab对应的代码仓库里面

配置参考：创建SCM

Jenkinsfile如下

def label = "jenkins-agent"

podTemplate(label: label, containers: [
  containerTemplate(name: 'maven', image: 'maven:3.6.0-jdk-8-alpine', command: 'cat', ttyEnabled: true),
  containerTemplate(name: 'docker', image: 'docker:latest', command: 'cat', ttyEnabled: true),
  containerTemplate(name: 'kubectl', image: 'cnych/kubectl', command: 'cat', ttyEnabled: true)],
  serviceAccount: 'jenkins-master',
  volumes: [
  hostPathVolume(mountPath: '/var/run/docker.sock', hostPath: '/var/run/docker.sock'),
  hostPathVolume(mountPath: '/root/.m2', hostPath: '/data/nfs-data/mvn')])
  //hostPathVolume(mountPath: '/home/jenkins/agent/workspace', hostPath: '/data/nfs-data/jenkins_share')])
{
  node(label) {
    def myRepo = checkout scm
    // 获取 git commit id 作为镜像标签
    def imageTag = sh(script: "git rev-parse --short HEAD", returnStdout: true).trim()
    // 仓库地址
    def registryUrl = "myharbor.com"
    def imageEndpoint = "devops/devopsimage-demo"
    // 镜像
    def image = "${registryUrl}/${imageEndpoint}:${imageTag}"
    stage('mvn构建jar包') {
      container('maven') {
        echo "1.mvn构建"
        sh "mvn -B -q clean install -DskipTests"
      }
    }
    stage('构建镜像推送harbor仓库') {
       withCredentials([usernamePassword(
        credentialsId: 'harbor_auth',
        passwordVariable: 'HARBOR_PASSWORD',
        usernameVariable: 'HARBOR_USER')]) {
          container('docker') {
            echo "1. 检测docker命令并获取本地资源"
            sh """
              docker login ${registryUrl} -u ${HARBOR_USER} -p ${HARBOR_PASSWORD}
              docker --version
              docker build -t ${image} .
              docker push ${image}
            """
          }
      }
    }

    stage('kubectl一键部署') {
      withCredentials([file(credentialsId: 'kubeconfig', variable: 'KUBECONFIG')]) {
        container('kubectl') {
          echo "1.kubectl查看jenkins应用"
          sh """
            kubectl --kubeconfig=$KUBECONFIG set image deployment/micro micro=${image} -n devops"
            sleep 10"
            kubectl --kubeconfig=$KUBECONFIG get pod -n devops |grep micro|grep Running
          """
        }
      }
    }
    stage('kubectl一键部署') {
          sh "echo 测试流程正常"
    }
  }
}

4.3.3 Dockerfile内容

FROM openjdk:8-jre-alpine
WORKDIR /app
COPY springboot/target/*.jar /app/app.jar
# 启动命令
ENTRYPOINT ["java", "-jar", "/app/app.jar"]

4.3.3 执行流水线demo

执行后查看所有阶段日志

Started by user jamking
Obtained Jenkinsfile from git http://172.16.10.142/newtestgroup/newtest.git
[Pipeline] Start of Pipeline
[Pipeline] podTemplate
[Pipeline] {
[Pipeline] node
Created Pod: devops-kubernetes devops/java-agent-0gxhm-3kkr0
[PodInfo] devops/java-agent-0gxhm-3kkr0
	Container [docker] waiting [ContainerCreating] No message
	Container [jnlp] waiting [ContainerCreating] No message
	Container [kubectl] waiting [ContainerCreating] No message
	Container [maven] waiting [ContainerCreating] No message
	Pod [Pending][ContainersNotReady] containers with unready status: [maven kubectl docker jnlp]
[PodInfo] devops/java-agent-0gxhm-3kkr0
	Container [docker] waiting [ContainerCreating] No message
	Container [jnlp] waiting [ContainerCreating] No message
	Container [kubectl] waiting [ContainerCreating] No message
	Container [maven] waiting [ContainerCreating] No message
	Pod [Pending][ContainersNotReady] containers with unready status: [maven kubectl docker jnlp]
Agent java-agent-0gxhm-3kkr0 is provisioned from template java-agent-0gxhm
---
apiVersion: "v1"
kind: "Pod"
metadata:
  annotations:
    kubernetes.jenkins.io/last-refresh: "1755676521367"
    buildUrl: "http://jenkins-master.devops.svc.cluster.local:8080/job/test-demo/29/"
    runUrl: "job/test-demo/29/"
  labels:
    jenkins: "slave"
    jenkins/label-digest: "b0bf52919934ffbb3665469466121a62f7004086"
    jenkins/label: "java-agent"
    kubernetes.jenkins.io/controller: "http___jenkins-master_devops_svc_cluster_local_8080x"
  name: "java-agent-0gxhm-3kkr0"
  namespace: "devops"
spec:
  containers:
  - command:
    - "cat"
    image: "maven:3.6.0-jdk-8-alpine"
    imagePullPolicy: "IfNotPresent"
    name: "maven"
    resources: {}
    tty: true
    volumeMounts:
    - mountPath: "/root/.m2"
      name: "volume-1"
      readOnly: false
    - mountPath: "/var/run/docker.sock"
      name: "volume-0"
      readOnly: false
    - mountPath: "/home/jenkins/agent"
      name: "workspace-volume"
      readOnly: false
  - command:
    - "cat"
    image: "cnych/kubectl"
    imagePullPolicy: "IfNotPresent"
    name: "kubectl"
    resources: {}
    tty: true
    volumeMounts:
    - mountPath: "/root/.m2"
      name: "volume-1"
      readOnly: false
    - mountPath: "/var/run/docker.sock"
      name: "volume-0"
      readOnly: false
    - mountPath: "/home/jenkins/agent"
      name: "workspace-volume"
      readOnly: false
  - command:
    - "cat"
    image: "docker:latest"
    imagePullPolicy: "IfNotPresent"
    name: "docker"
    resources: {}
    tty: true
    volumeMounts:
    - mountPath: "/root/.m2"
      name: "volume-1"
      readOnly: false
    - mountPath: "/var/run/docker.sock"
      name: "volume-0"
      readOnly: false
    - mountPath: "/home/jenkins/agent"
      name: "workspace-volume"
      readOnly: false
  - env:
    - name: "JENKINS_SECRET"
      value: "********"
    - name: "REMOTING_OPTS"
      value: "-noReconnectAfter 1d"
    - name: "JENKINS_AGENT_NAME"
      value: "java-agent-0gxhm-3kkr0"
    - name: "JENKINS_NAME"
      value: "java-agent-0gxhm-3kkr0"
    - name: "JENKINS_AGENT_WORKDIR"
      value: "/home/jenkins/agent"
    - name: "JENKINS_URL"
      value: "http://jenkins-master.devops.svc.cluster.local:8080/"
    image: "jenkins/inbound-agent:3309.v27b_9314fd1a_4-1"
    name: "jnlp"
    resources:
      requests:
        memory: "256Mi"
        cpu: "100m"
    volumeMounts:
    - mountPath: "/root/.m2"
      name: "volume-1"
      readOnly: false
    - mountPath: "/var/run/docker.sock"
      name: "volume-0"
      readOnly: false
    - mountPath: "/home/jenkins/agent"
      name: "workspace-volume"
      readOnly: false
  nodeSelector:
    kubernetes.io/os: "linux"
  restartPolicy: "Never"
  serviceAccountName: "jenkins-master"
  volumes:
  - hostPath:
      path: "/var/run/docker.sock"
    name: "volume-0"
  - hostPath:
      path: "/data/nfs-data/mvn"
    name: "volume-1"
  - emptyDir:
      medium: ""
    name: "workspace-volume"

Running on java-agent-0gxhm-3kkr0 in /home/jenkins/agent/workspace/test-demo
[Pipeline] {
[Pipeline] checkout
The recommended git tool is: NONE
using credential gitlab_user
Cloning the remote Git repository
Cloning repository http://172.16.10.142/newtestgroup/newtest.git
 > git init /home/jenkins/agent/workspace/test-demo # timeout=10
Fetching upstream changes from http://172.16.10.142/newtestgroup/newtest.git
 > git --version # timeout=10
 > git --version # 'git version 2.39.5'
using GIT_ASKPASS to set credentials 流水线代码访问账密
 > git fetch --tags --force --progress -- http://172.16.10.142/newtestgroup/newtest.git +refs/heads/*:refs/remotes/origin/* # timeout=10
Avoid second fetch
Checking out Revision e44c1d1f38f7dceb15dd2e36d738a94a9174879b (refs/remotes/origin/branch_dev)
 > git config remote.origin.url http://172.16.10.142/newtestgroup/newtest.git # timeout=10
 > git config --add remote.origin.fetch +refs/heads/*:refs/remotes/origin/* # timeout=10
 > git rev-parse refs/remotes/origin/branch_dev^{commit} # timeout=10
 > git config core.sparsecheckout # timeout=10
 > git checkout -f e44c1d1f38f7dceb15dd2e36d738a94a9174879b # timeout=10
Commit message: "Update Jenkinsfile"
 > git rev-list --no-walk 76c444df57f09d5f978dab8da05054a60ba4c1e8 # timeout=10
[Pipeline] sh
+ git rev-parse --short HEAD
[Pipeline] stage
[Pipeline] { (mvn构建jar包)
[Pipeline] container
[Pipeline] {
[Pipeline] echo
1.mvn构建
[Pipeline] sh
+ mvn -B -q clean install -DskipTests
[Pipeline] }
[Pipeline] // container
[Pipeline] }
[Pipeline] // stage
[Pipeline] stage
[Pipeline] { (构建镜像推送harbor仓库)
[Pipeline] withCredentials
Masking supported pattern matches of $HARBOR_PASSWORD
[Pipeline] {
[Pipeline] container
[Pipeline] {
[Pipeline] echo
1. 检测docker命令并获取本地资源
[Pipeline] sh
Warning: A secret was passed to "sh" using Groovy String interpolation, which is insecure.
		 Affected argument(s) used the following variable(s): [HARBOR_PASSWORD]
		 See https://jenkins.io/redirect/groovy-string-interpolation for details.
+ docker login myharbor.com -u admin -p ****
WARNING! Using --password via the CLI is insecure. Use --password-stdin.

WARNING! Your credentials are stored unencrypted in '/root/.docker/config.json'.
Configure a credential helper to remove this warning. See
https://docs.docker.com/go/credential-store/

Login Succeeded
+ docker --version
Docker version 28.3.3, build 980b856
+ docker build -t myharbor.com/devops/devopsimage-demo:e44c1d1f .
#0 building with "default" instance using docker driver

#1 [internal] load build definition from Dockerfile
#1 transferring dockerfile: 257B 0.0s done
#1 DONE 0.0s

#2 [internal] load metadata for docker.io/library/openjdk:8-jre-alpine
#2 DONE 0.0s

#3 [internal] load .dockerignore
#3 transferring context: 2B done
#3 DONE 0.0s

#4 [1/3] FROM docker.io/library/openjdk:8-jre-alpine
#4 DONE 0.0s

#5 [internal] load build context
#5 transferring context: 166.11MB 0.9s done
#5 DONE 0.9s

#6 [2/3] WORKDIR /app
#6 CACHED

#7 [3/3] COPY springboot/target/MicroCommunityBoot.jar /app/app.jar
#7 DONE 0.4s

#8 exporting to image
#8 exporting layers
#8 exporting layers 0.6s done
#8 writing image sha256:d43564e5cd6da8ceceae9c0b8c5b97844f7071389db88ac4cec6b48cd26cef0c done
#8 naming to myharbor.com/devops/devopsimage-demo:e44c1d1f done
#8 DONE 0.6s
WARNING: current commit information was not captured by the build: failed to read current commit information with git rev-parse --is-inside-work-tree
+ docker push myharbor.com/devops/devopsimage-demo:e44c1d1f
The push refers to repository [myharbor.com/devops/devopsimage-demo]
b5f20a7d3bcd: Preparing
bbbec76424e1: Preparing
edd61588d126: Preparing
9b9b7f3d56a0: Preparing
f1b5933fe4b5: Preparing
9b9b7f3d56a0: Layer already exists
edd61588d126: Layer already exists
bbbec76424e1: Layer already exists
f1b5933fe4b5: Layer already exists
b5f20a7d3bcd: Pushed
e44c1d1f: digest: sha256:cbcbef5f59d33a0bd16ff55e21613ea5b8beba80ed7939414c0c69e0dcd72d1d size: 1367
[Pipeline] }
[Pipeline] // container
[Pipeline] }
[Pipeline] // withCredentials
[Pipeline] }
[Pipeline] // stage
[Pipeline] stage
[Pipeline] { (kubectl一键部署)
[Pipeline] withCredentials
Masking supported pattern matches of $KUBECONFIG
[Pipeline] {
[Pipeline] container
[Pipeline] {
[Pipeline] echo
1.kubectl查看jenkins应用
[Pipeline] sh
Warning: A secret was passed to "sh" using Groovy String interpolation, which is insecure.
		 Affected argument(s) used the following variable(s): [KUBECONFIG]
		 See https://jenkins.io/redirect/groovy-string-interpolation for details.
+ kubectl '--kubeconfig=****' set image deployment/micro 'micro=myharbor.com/devops/devopsimage-demo:e44c1d1f' -n devops
deployment.apps/micro image updated
[Pipeline] sh
+ sleep 10
[Pipeline] sh
+ kubectl '--kubeconfig=****' get pod -n devops
+ grep micro
+ grep Running
micro-76cdf45444-xrknh            1/1     Running   0               11s
[Pipeline] }
[Pipeline] // container
[Pipeline] }
[Pipeline] // withCredentials
[Pipeline] }
[Pipeline] // stage
[Pipeline] stage
[Pipeline] { (kubectl一键部署)
[Pipeline] sh
+ echo 测试流程正常
测试流程正常
[Pipeline] }
[Pipeline] // stage
[Pipeline] }
[Pipeline] // node
[Pipeline] }
[Pipeline] // podTemplate
[Pipeline] End of Pipeline
Finished: SUCCESS

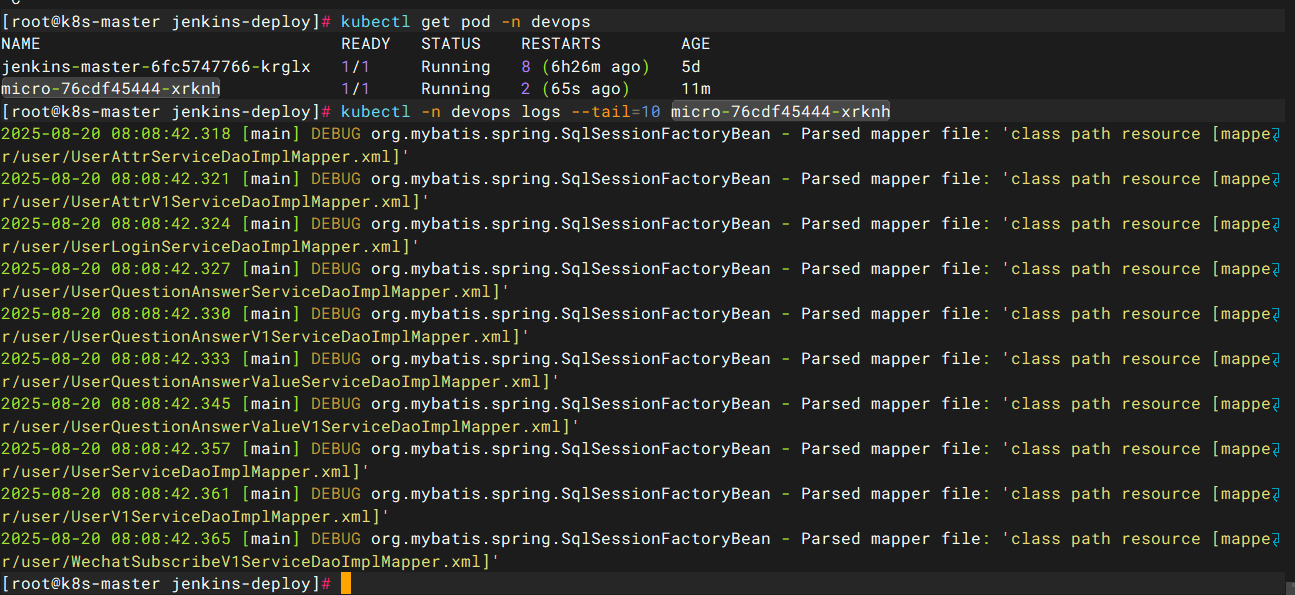

最后打印【Finished: SUCCESS】才代表流水线运行正常，查看部署的服务Running和日志

五、创建jenkins静态slave（可选）

建议采取动态slave的方法，动态slave完成job自动释放资源，保证工作空间代码不外泄，相对安全可靠。但根据实际情况选择，多一种学习或使用方式。

5.1 创建流程

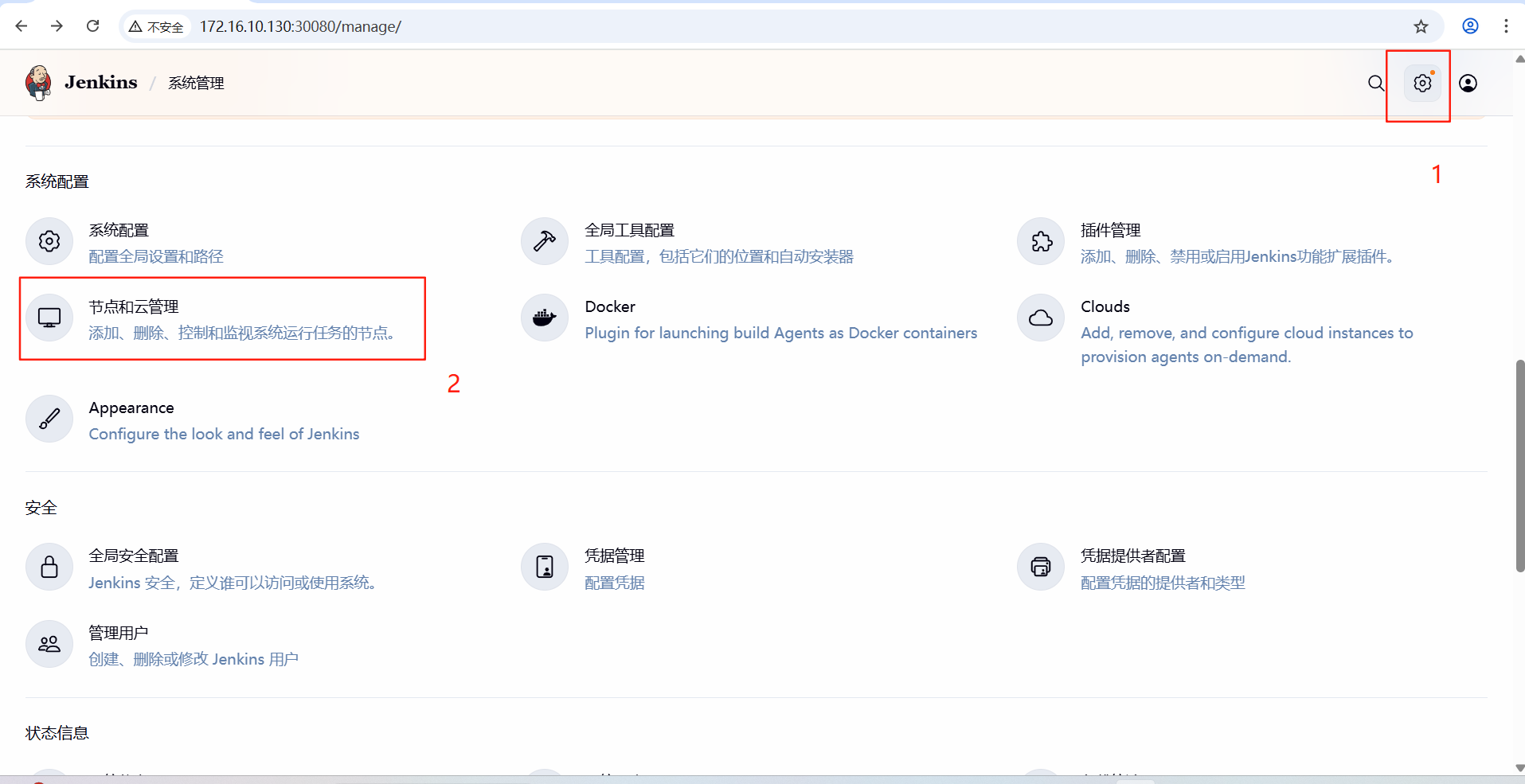

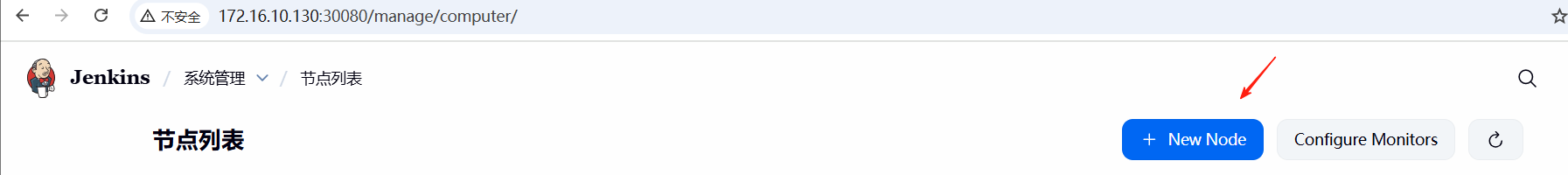

流程如下

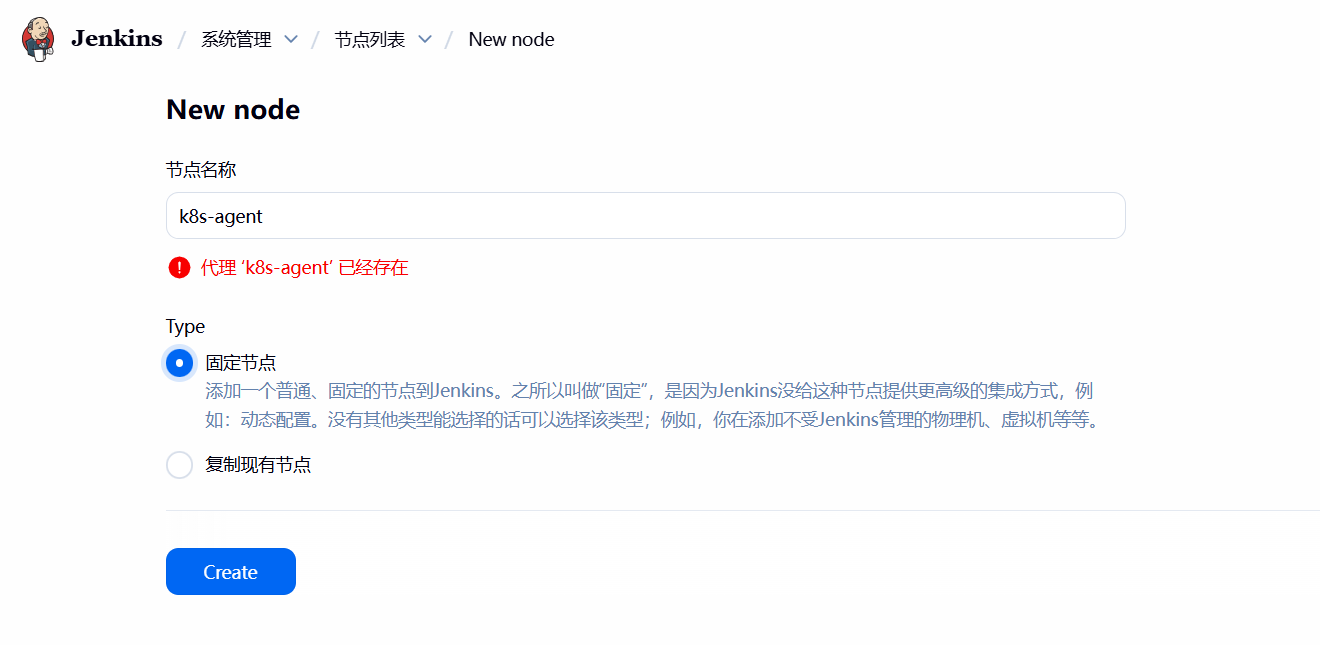

新建agent名称，这里我已新建，所以会爆红

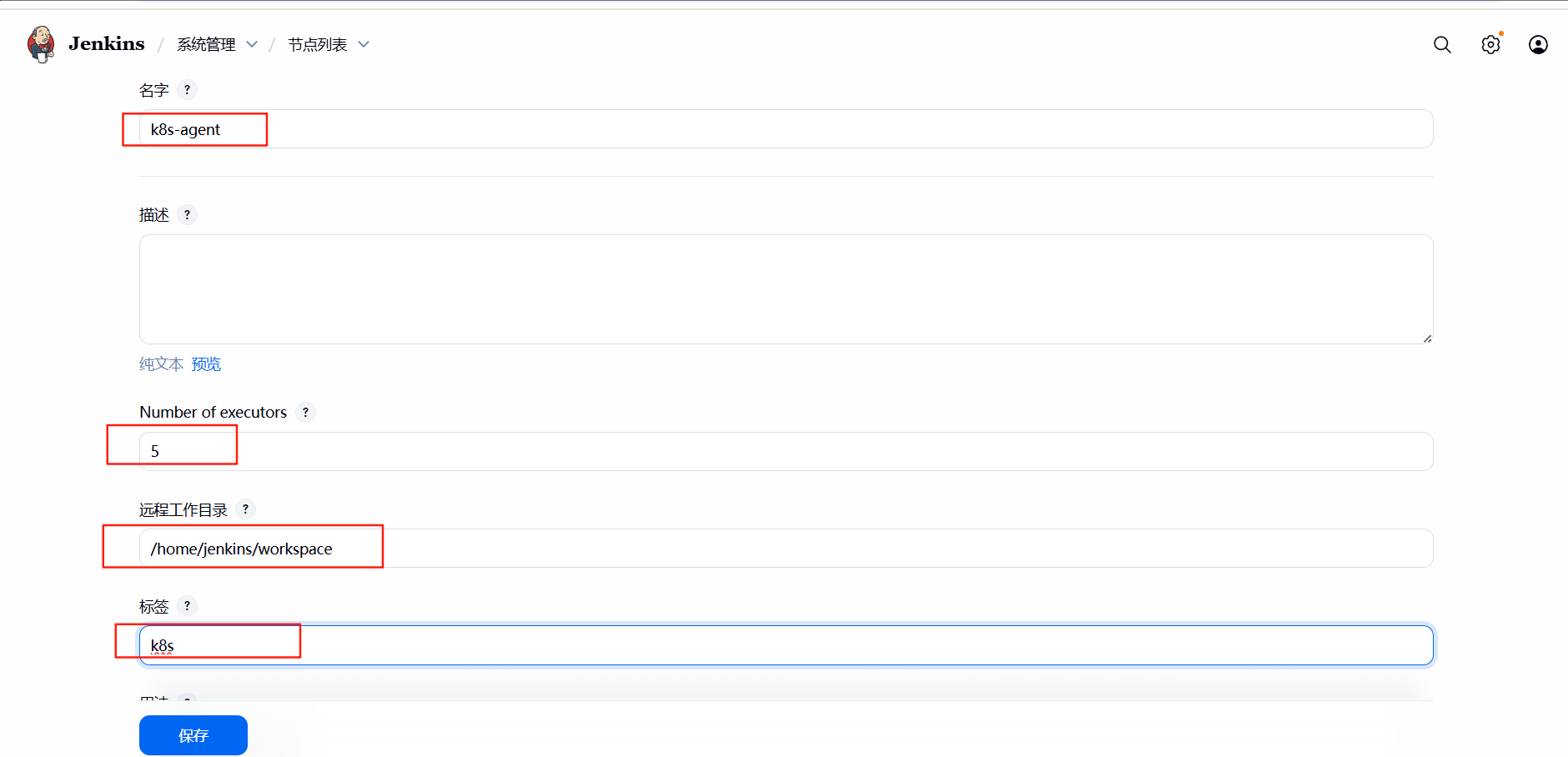

填好这些关键信息，名字、进程job数、工作目录、标签。最后【保存】

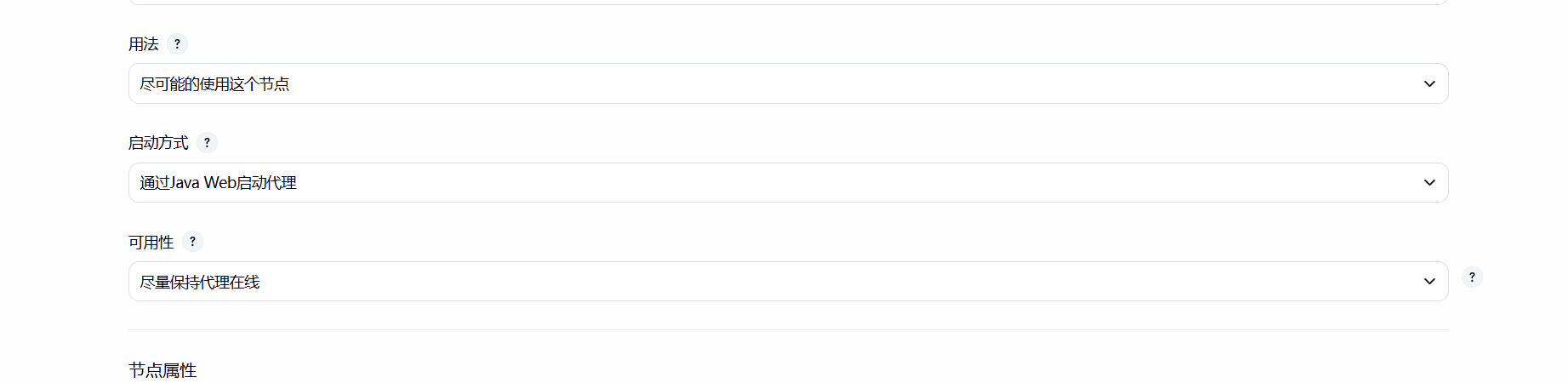

用法如下，因为只有一个节点，和部署agent的方式是通过web连接的，因此启动方式选择java web

5.1.1 获取连接master的secret（重要）

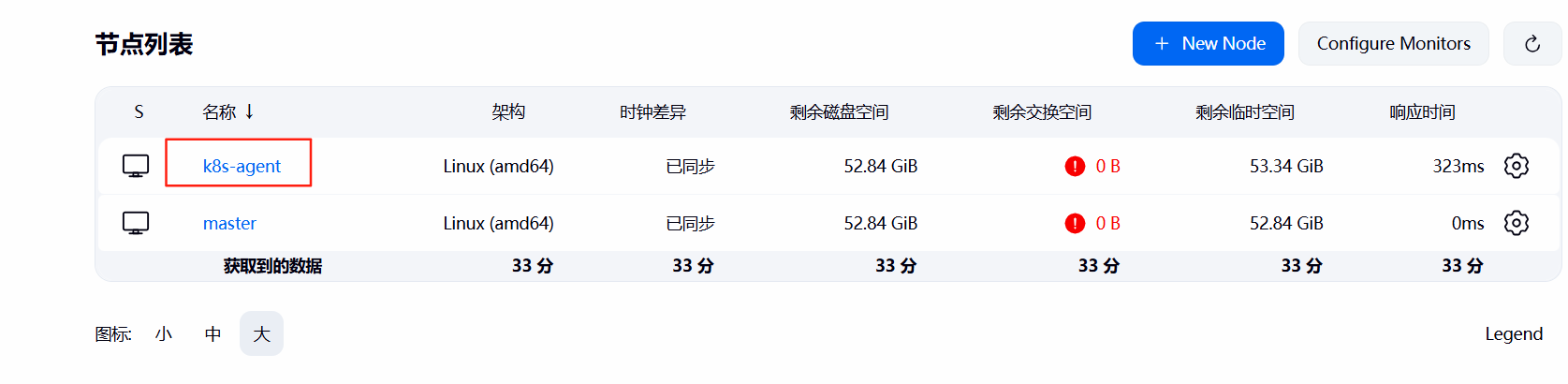

从新建的agent端点击

复制此串secret并保存，在3.3.3的yaml的env.JENKINS_SECRET.value并填上

5.2 部署jenkins-agent

5.2.1 创建pv

apiVersion: v1
kind: PersistentVolume
metadata:
  name: jenkins-agent-pv
  labels:
    app: jenkins-agent-storage
spec:
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteMany
  nfs:
    server: 172.16.10.130
    path: /data/nfs-data/jenkins-agent
  persistentVolumeReclaimPolicy: Retain

5.2.2 创建pvc

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: jenkins-agent-pvc
  namespace: devops
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 10Gi
  selector:
    matchLabels:
      app: jenkins-agent-storage

5.2.3 创建deployment

apiVersion: v1
kind: ConfigMap
metadata:
  name: scripts
  namespace: devops
data:
  start.sh: |
    #!/bin/bash
    set -e
    echo "=== 启动master连接 ==="
    curl -sO ${JENKINS_URL}/jnlpJars/agent.jar
    java -jar agent.jar -url ${JENKINS_URL}/ -secret ${JENKINS_SECRET} -name "${JENKINS_AGENT_NAME}" -webSocket -workDir "${JENKINS_AGENT_WORKDIR}"
    echo "=== 连接master成功 ==="
---
kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: jenkinsi-agent
  name: jenkins-agent
  namespace: devops
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: jenkins-agent
  template:
    metadata:
      labels:
        k8s-app: jenkins-agent
      namespace: devops
      name: jenkins-agent
    spec:
      containers:
        - name: jenkins-agent
          image: myharbor.com/jenkins/inbound-agent:latest
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          resources:
            limits:
              cpu: 500m
              memory: 1Gi
            requests:
              cpu: 250m
              memory: 512Mi
          volumeMounts:
            - name: agent-home
              mountPath: /home/jenkins
            - name: dockersock
              mountPath: "/var/run/docker.sock"
            - name: dockercmd
              mountPath: /usr/bin/docker
            #- name: kubectlconfig
            #  mountPath: /home/jenkins/.kube/config
            - name: kubectlcmd
              mountPath: /usr/bin/kubectl
            #- name: jenkins-agent-workdir
            #  mountPath: /home/jenkins/workspace
            - name: script-mount
              mountPath: /home/jenkins/scripts
           # - name: localtime
           #   mountPath: /etc/localtime
          env:
            - name: JENKINS_URL
              value: http://jenkins-master.devops.svc.cluster.local:8080
            - name: JENKINS_SECRET
              value: 0049c76bc98ad0403be866f79115f05b185e6a05c28075d830fea8da4173d193
            - name: JENKINS_AGENT_NAME
              value: k8s-agent
            - name: JENKINS_AGENT_WORKDIR
              value: /home/jenkins/workspace
            - name: JENKINS_TUNNEL
              value: http://jenkins-master.devops.svc.cluster.local:50000
          command: ["/bin/bash", "/home/jenkins/scripts/start.sh"]
          #command: ["/bin/bash", "-c"]
          #args:
          #  - |
          #    echo ${JENKINS_URL}
          #    curl -sO ${JENKINS_URL}/jnlpJars/agent.jar && java -jar agent.jar -url ${JENKINS_URL}/ -secret ${JENKINS_SECRET} -name "${JENKINS_AGENT_NAME}" -webSocket -workDir "${JENKINS_AGENT_WORKDIR}"
      volumes:
       # - name: buildtools
       #   hostPath:
       #     path: /data/Jenkins/buildtools
       #     type: Directory
       # - name: kubectlconfig
       #   hostPath:
       #     path: /data/.kube/config
        - name: kubectlcmd
          hostPath:
            path: /usr/bin/kubectl
        - name: dockersock
          hostPath:
            path: /var/run/docker.sock
        - name: dockercmd
          hostPath:
            path: /usr/bin/docker
        #- name: jenkins-agent-workdir
        #  hostPath:
        #    path: /data/Jenkins/workspace
        - name: script-mount
          configMap:
            name: scripts
            defaultMode: 0755
        - name: agent-home
          persistentVolumeClaim:
            claimName: jenkins-agent-pvc
        #- name: localtime
        #  hostPath:
        #    path: /etc/localtime

当如上yaml均执行后，容器会自动执行configmap内的连接master的shell脚本

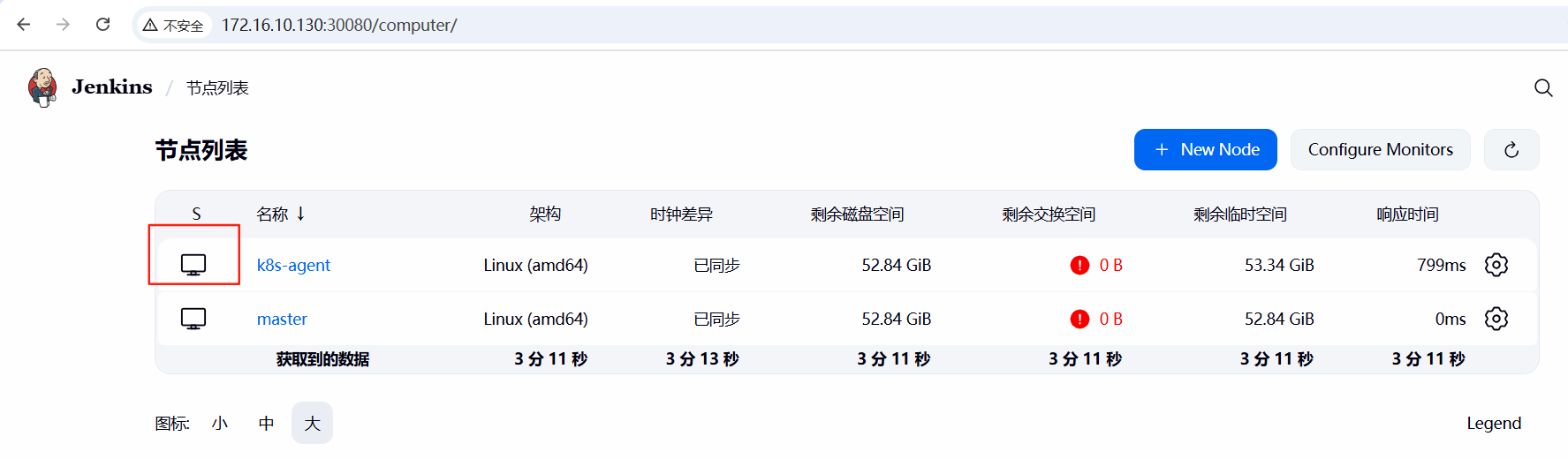

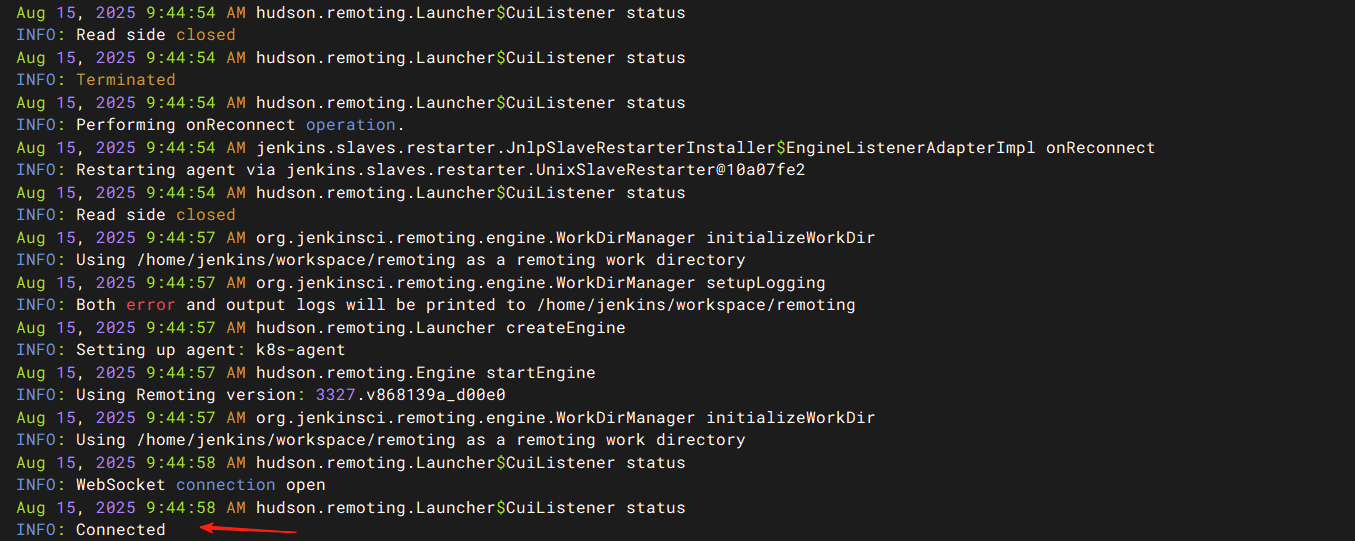

当连接Connected，节点列表的k8s-agent的PC图标会正常，未正常连接的话，PC内会红×

5.3 流水线实践

步骤和本文4.3章节类似，不再赘述
