一、部署prometheus-server

1.1 rabc

---
# 1. 创建命名空间
apiVersion: v1
kind: Namespace
metadata:
  name: monitor

---
# 2. 创建 ServiceAccount
apiVersion: v1
kind: ServiceAccount
metadata:
  name: prometheus
  namespace: monitor

---
# 3. 创建自定义 ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: prometheus-custom-role
rules:
# 监控核心资源
- apiGroups: [""]
  resources: ["nodes","nodes/metrics","services","endpoints","pods"]
  verbs: ["get", "list", "watch"]
# 添加 nodes/proxy 权限
- apiGroups: [""]
  resources: ["nodes/proxy"]
  verbs: ["get", "list", "watch"]
# 添加非资源 URL 权限
- nonResourceURLs: ["/metrics"]
  verbs: ["get"]
# 监控工作负载资源
- apiGroups: ["apps"]
  resources: ["deployments","statefulsets","replicasets","daemonsets"]
  verbs: ["get", "list", "watch"]
# 访问 metrics API
- apiGroups: ["metrics.k8s.io"]
  resources: ["pods","nodes"]
  verbs: ["get", "list", "watch"]
# 访问配置
- apiGroups: [""]
  resources: ["configmaps"]
  verbs: ["get"]
# 访问事件
- apiGroups: [""]
  resources: ["events"]
  verbs: ["list", "watch"]

---
# 4. 创建 ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: monitor-clusterrolebinding
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: prometheus-custom-role  # 使用自定义角色
subjects:
- kind: ServiceAccount
  name: prometheus
  namespace: monitor

1.2 configmap

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    app: prometheus
  name: prometheus-cm
  namespace: monitor
data:
  prometheus.yml: |
    global:
      scrape_interval: 15s
      scrape_timeout: 10s
      evaluation_interval: 1m
    scrape_configs:
    #node节点基本监控指标采集
    - job_name: 'node-exporter'
      kubernetes_sd_configs:
      - role: node
      relabel_configs:
      - source_labels: [__address__]
        regex: '(.*):10250'
        replacement: '${1}:9100'
        target_label: __address__
        action: replace
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
    #集群活跃采集
    - job_name: 'kubernetes-node-cadvisor'
      kubernetes_sd_configs:
      - role:  node
      scheme: https
      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
      relabel_configs:
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
      - target_label: __address__
        replacement: kubernetes.default.svc:443
      - source_labels: [__meta_kubernetes_node_name]
        regex: (.+)
        target_label: __metrics_path__
        replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor
    #k8s-apisver端点采集
    - job_name: 'kubernetes-apiserver'
      kubernetes_sd_configs:
      - role: endpoints
      scheme: https
      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
      relabel_configs:
      - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
        action: keep
        regex: default;kubernetes;https
    #k8s-svc端点采集
    - job_name: 'kubernetes-service-endpoints'
      kubernetes_sd_configs:
      - role: endpoints
      relabel_configs:
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
        action: keep
        regex: true
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
        action: replace
        target_label: __scheme__
        regex: (https?)
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
        action: replace
        target_label: __metrics_path__
        regex: (.+)
      - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
        action: replace
        target_label: __address__
        regex: ([^:]+)(?::\d+)?;(\d+)
        replacement: $1:$2
      - action: labelmap
        regex: __meta_kubernetes_service_label_(.+)
      - source_labels: [__meta_kubernetes_namespace]
        action: replace
        target_label: kubernetes_namespace
      - source_labels: [__meta_kubernetes_service_name]
        action: replace
        target_label: kubernetes_name
    - job_name: 'kube-state-metrics'
      kubernetes_sd_configs:
      - role: pod
      relabel_configs:
      # 只抓取 kube-state-metrics Pod
      - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_name]
        action: keep
        regex: kube-state-metrics
      # 添加命名空间标签
      - source_labels: [__meta_kubernetes_namespace]
        action: replace
        target_label: kubernetes_namespace
      # 添加 Pod 名称标签
      - source_labels: [__meta_kubernetes_pod_name]
        action: replace
        target_label: kubernetes_pod_name
    - job_name: 'kubernetes-pods'
      kubernetes_sd_configs:
      - role: pod
      relabel_configs:
      # 只抓取带有 prometheus.io/scrape=true 注解的 Pod
      - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
        action: keep
        regex: true
      # 从注解中获取抓取路径
      - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
        action: replace
        target_label: __metrics_path__
        regex: (.+)
      # 从注解中获取端口
      - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
        action: replace
        regex: ([^:]+)(?::\d+)?;(\d+)
        replacement: $1:$2
        target_label: __address__
      # 添加命名空间标签
      - source_labels: [__meta_kubernetes_namespace]
        action: replace
        target_label: kubernetes_namespace
      # 添加 Pod 名称标签
      - source_labels: [__meta_kubernetes_pod_name]
        action: replace
        target_label: kubernetes_pod_name

1.3 prometheus-server-deployment

apiVersion: apps/v1
kind: Deployment
metadata:
  name: prometheus-server
  namespace: monitor
  labels:
    app: prometheus
spec:
  replicas: 1
  selector:
    matchLabels:
      app: prometheus
      component: server
    #matchExpressions:
    #- {key: app, operator: In, values: [prometheus]}
    #- {key: component, operator: In, values: [server]}
  template:
    metadata:
      labels:
        app: prometheus
        component: server
      annotations:
        #prometheus.io/scrape: 'false'
        prometheus.io/scrape: "true"
        prometheus.io/path: "/metrics"
        prometheus.io/port: "9090"
    spec:
      serviceAccountName: prometheus
      containers:
      - name: prometheus
        image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/prom/prometheus:v3.5.0
        imagePullPolicy: IfNotPresent
        command:
          - prometheus
          - --config.file=/etc/prometheus/prometheus.yml
          - --storage.tsdb.path=/prometheus
          - --storage.tsdb.retention.time=720h
          - --web.enable-lifecycle
        ports:
        - containerPort: 9090
          protocol: TCP
        volumeMounts:
        - mountPath: /etc/prometheus
          name: prometheus-cm
        - mountPath: /prometheus/
          name: prometheus-volume
      volumes:
        - name: prometheus-cm
          configMap:
            name: prometheus-cm
        - name: prometheus-volume
          hostPath:
           path: /data/nfs-data/prometheus
           type: Directory

1.4 prometheus-server-svc

apiVersion: v1
kind: Service
metadata:
  name: prometheus
  namespace: monitor
  labels:
    app: prometheus
spec:
  type: NodePort
  ports:
    - port: 9090
      targetPort: 9090
      nodePort: 30090
      protocol: TCP
  selector:
    app: prometheus
    component: server

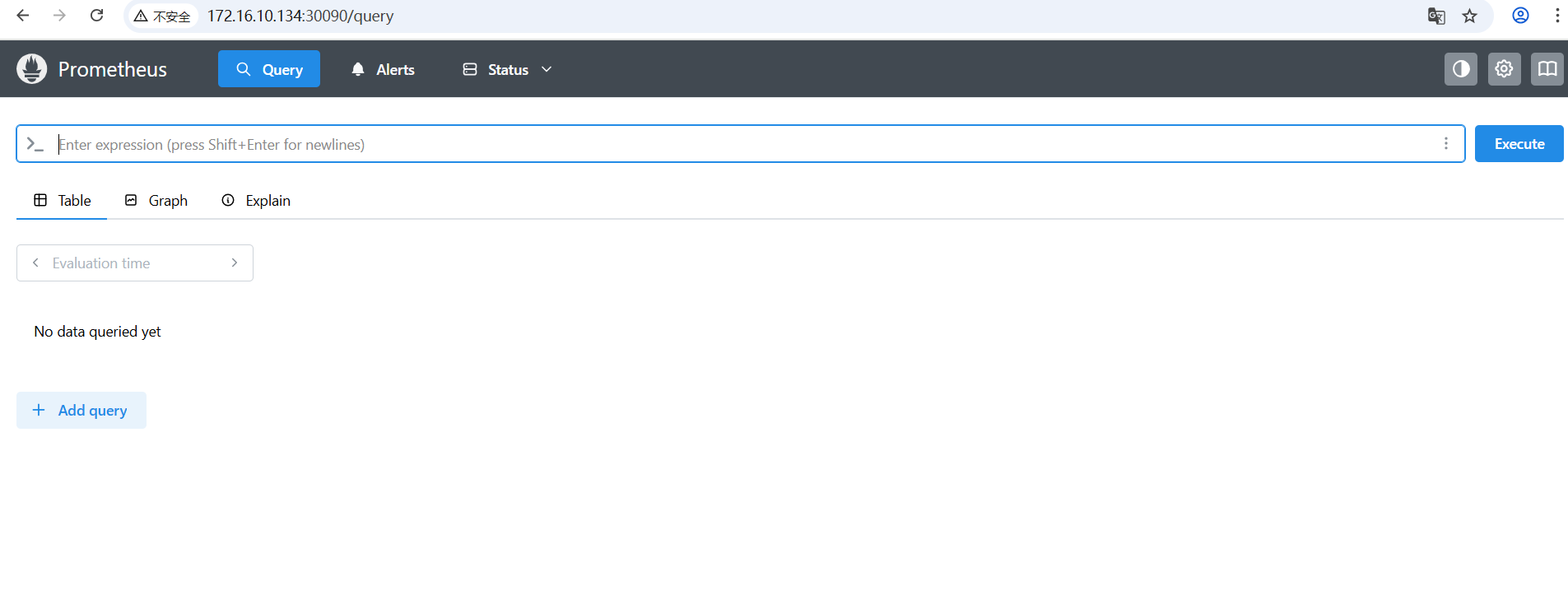

1.5 访问
