1、为什么使用ingress
优点 1：统一入口与极致的成本效益
这是 Ingress 最核心的价值。
- 工作方式：你只需要一个
LoadBalancerService（或者一个NodePort+ 外部负载均衡器）给 Ingress Controller 使用。这个唯一的入口将负责处理所有外部服务的流量。- 价值体现：
- 成本极低：你只需要为一个云负载均衡器付费，而不是为每个服务都付费。无论你内部有多少个服务，外部入口的成本都是固定的。
- IP 地址节约：整个集群对外只需要一个公网 IP 地址。
- 架构清晰：所有外部流量都经过这个统一的入口，便于监控、日志管理和安全策略的实施。
优点 2：基于域名的智能路由
Ingress 可以根据 HTTP 请求头中的
Host字段（也就是域名）来决定将流量转发给哪个后端服务。优点 3：基于路径的流量分发
在同一个域名下，Ingress 还可以根据 URL 的路径来转发流量。
优点 4：集中式的 TLS/SSL 管理
这是 Ingress 在运维上的一个巨大优势。
- 工作方式：你只需要在 Ingress 上配置一次 SSL 证书。Ingress Controller 会负责处理所有的 HTTPS 加密/解密工作（这个过程称为 TLS 终止）。
优点 5：丰富的扩展功能
Ingress 不仅仅做路由，它还是一个功能强大的流量网关。通过注解，你可以实现各种高级功能，例如：
- URL 重写：将
/external-path的请求重写为/internal-path再转发给后端。- 认证与授权：集成 OAuth2、Basic Auth 等，保护你的服务。
- 限流：防止恶意流量或突发流量打垮后端服务。
- 会话亲和性：确保来自同一用户的请求总是被转发到同一个 Pod。
- CORS 配置：解决跨域访问问题。
2、ingress部署
2.1 链接
以下链接是ingress-nginx的最新版，如果因外网问题拉取不道部署文件，可以在本文【附录】复制
https://raw.githubusercontent.com/kubernetes/ingress-nginx/main/deploy/static/provider/cloud/deploy.yaml

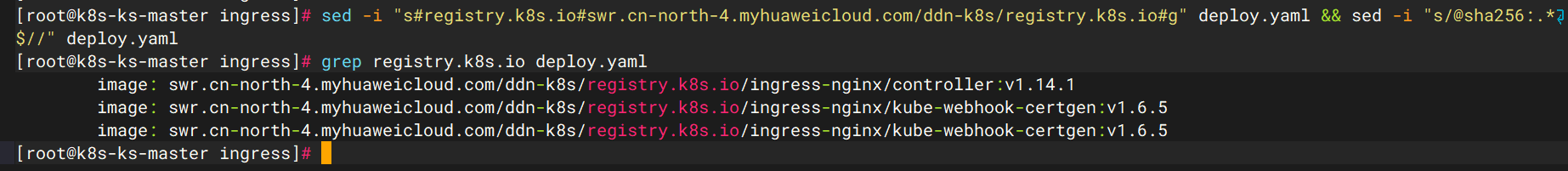

修改镜像地址
#不用digest标签
sed -i "s#registry.k8s.io#swr.cn-north-4.myhuaweicloud.com/ddn-k8s/registry.k8s.io#g" deploy.yaml && sed -i "s/@sha256:.*$//" deploy.yaml
#查看镜像地址
grep registry.k8s.io deploy.yaml
2.2 镜像列表
| ingress镜像列表 |
|---|
| swr.cn-north-4.myhuaweicloud.com/ddn-k8s/registry.k8s.io/ingress-nginx/controller:v1.14.1 |
| swr.cn-north-4.myhuaweicloud.com/ddn-k8s/registry.k8s.io/ingress-nginx/kube-webhook-certgen:v1.6.5 |
2.3 部署ingress-nginx

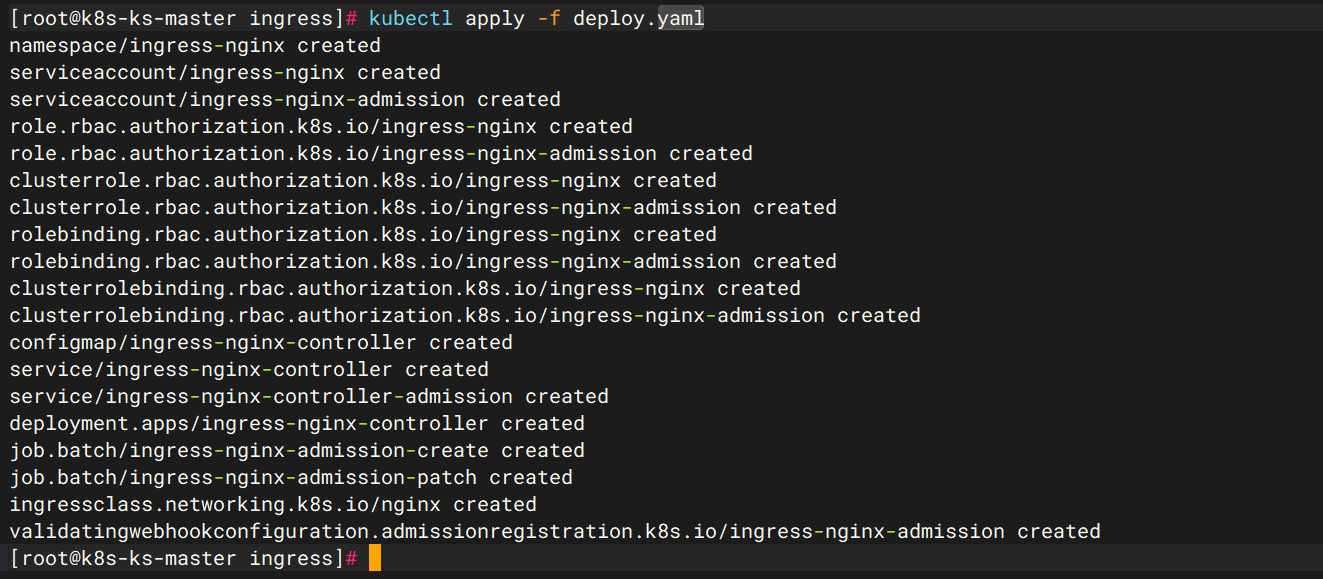

kubectl apply -f deploy.yaml

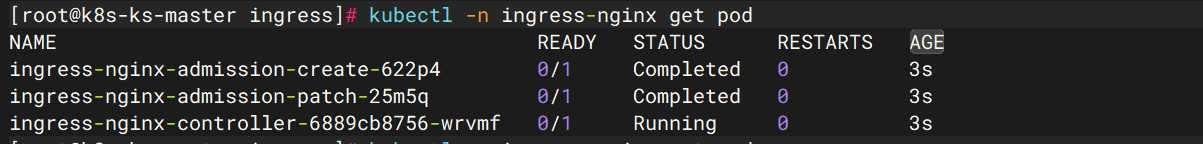

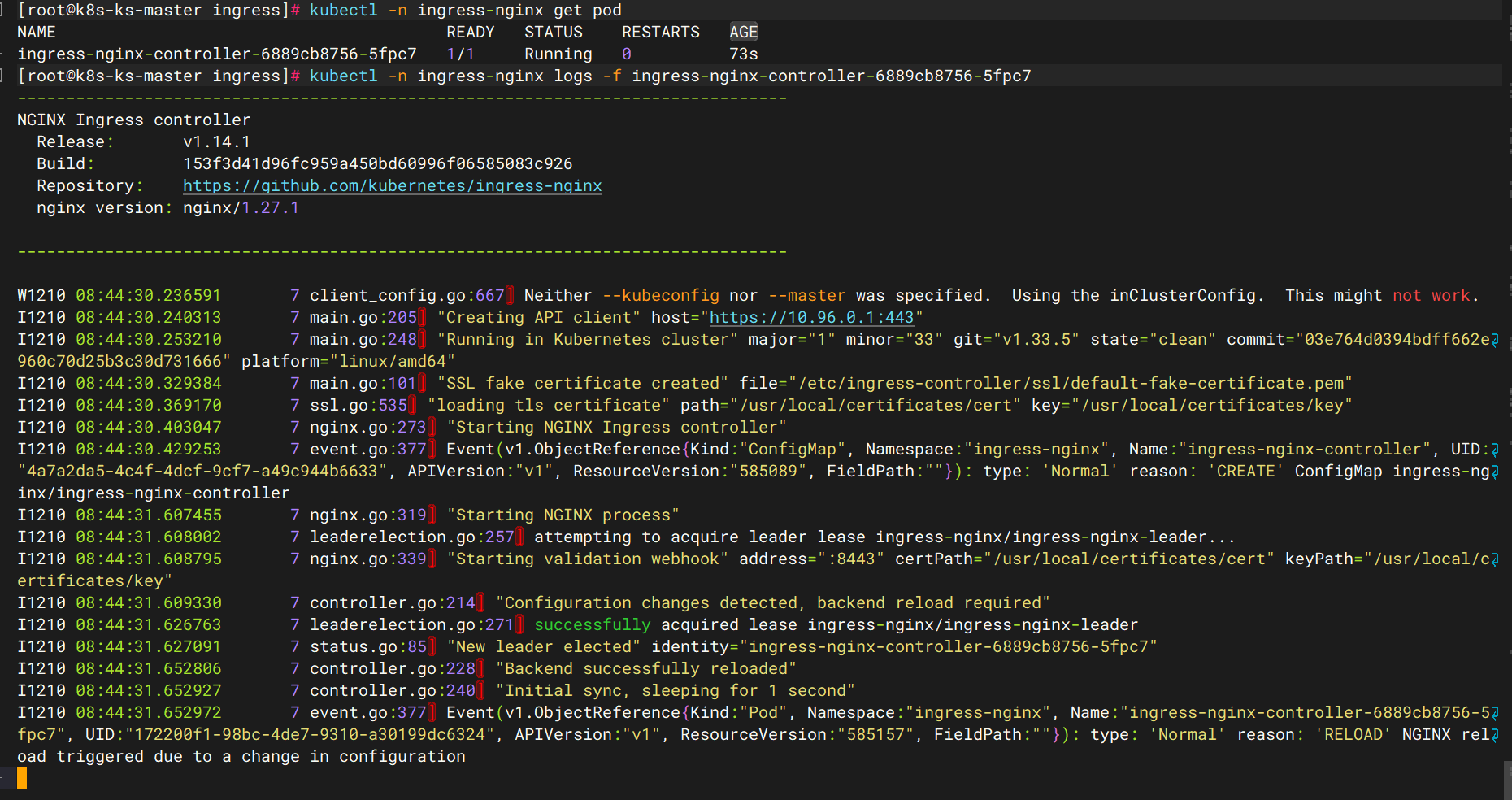

稍后会成功运行ingress-controller
3、EXTERNAL-IP(外部ip)

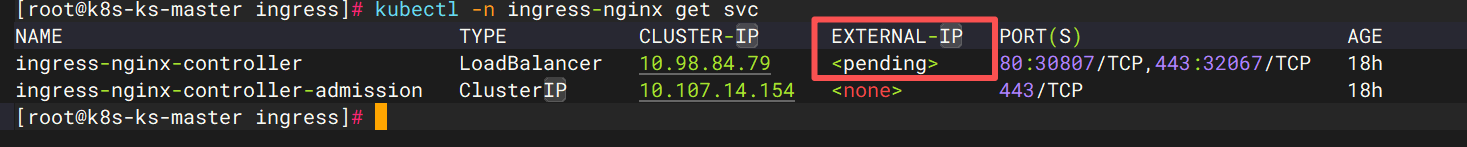

查看ingress的svc，发现EXTERNAL-IP是pending，官方说明：It will be the field. If that field shows , this means that your Kubernetes cluster wasn't able to provision the load balancer (generally, this is because it doesn't support services of type ).意思是：如果该字段显示为 ，说明你的 Kubernetes 集群没有能够配置负载均衡器（通常是因为它不支持类型的服务）。
继续往下文找到解决方法
3.1 MetalLB
思路：这个请求由云提供商控制器（Cloud Provider Controller）或负载均衡器驱动程序来处理。
方法：MetalLB，它是一个专为裸机 Kubernetes 网络设计的负载均衡器实现。它能让你的集群“假装”自己有云提供商，从而响应LoadBalancer类型的 Service 请求。
3.1.1 安装MetalLB
最新版地址，如果因外网问题拉取不到部署文件，可以在本文【附录】复制
#链接
https://raw.githubusercontent.com/metallb/metallb/v0.15.3/config/manifests/metallb-native.yaml
metallb-configmap
cat > configmap.yaml << EOF
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
name: first-pool
namespace: metallb-system
spec:
addresses:
#负载均衡ip，且需要填入自身实际的ip网段，每个ip可代表不同的后端服务
- 172.16.10.200-172.16.10.250
---
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
name: empty
namespace: metallb-system
EOF
3.1.2 镜像列表
| metalLB镜像列表 |
|---|
| quay.io/metallb/controller:v0.15.3 |
| quay.io/metallb/speaker:v0.15.3 |

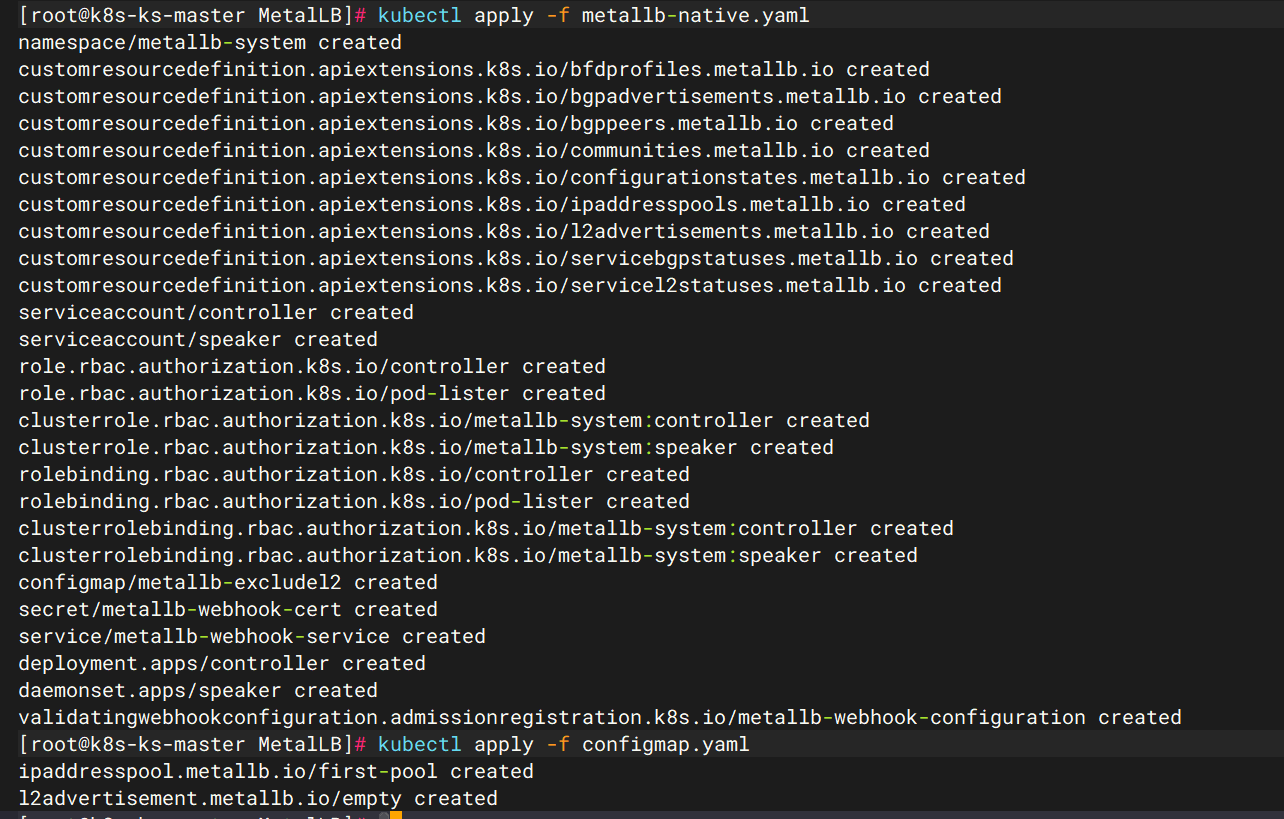

3.1.3 部署metallb
kubectl apply -f metallb-native.yaml
kubectl apply -f configmap.yaml
3.1.4 检查external-ip

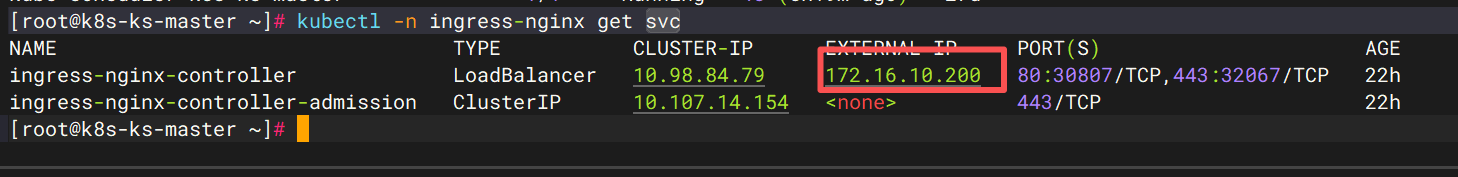

kubectl -n ingress-nginx get svc

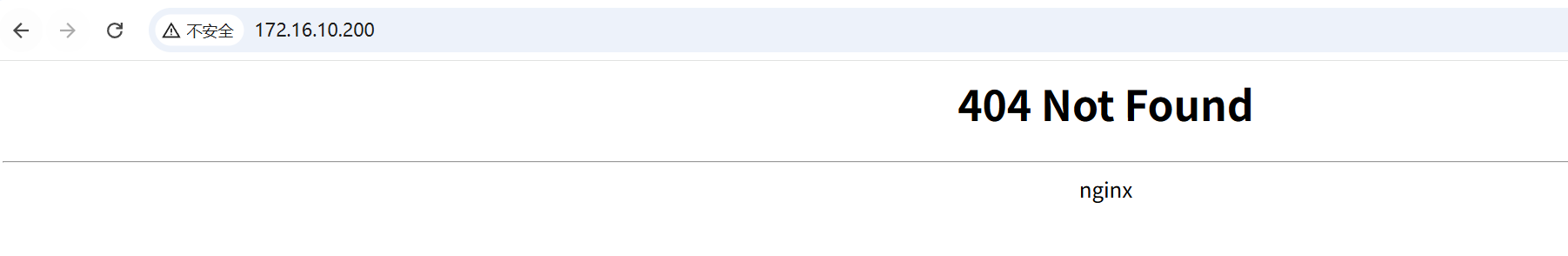

可以看到外部负载均衡ip已经生成了，访问外部ip，存在页面代表成功了，而404也正常，因为还没有配置ingress规则，接着看下文第4章。
4、Ingress规则
4.1 dev-demo的deployment和svc配置
apiVersion: apps/v1
kind: Deployment
metadata:
name: dev-demo
namespace: devops
spec:
replicas: 1
selector:
matchLabels:
app: dev-demo
template:
metadata:
labels:
app: dev-demo
spec:
containers:
- name: dev-demo
image: harbor.test.com/java-dev/demo:v1.0
volumeMounts: []
volumes: []
restartPolicy: Always
dnsPolicy: ClusterFirst
---
apiVersion: v1
kind: Service
metadata:
name: dev-demo
namespace: devops
spec:
selector:
app: dev-demo
ports:
- name: dev-demo-8080
protocol: TCP
port: 8080
targetPort: 8080
4.2 ingress-rule
注意：ingress规则的class需要与ingress-controller配置的class name一致，否则就像学生找不到班级一样，无法进行调度

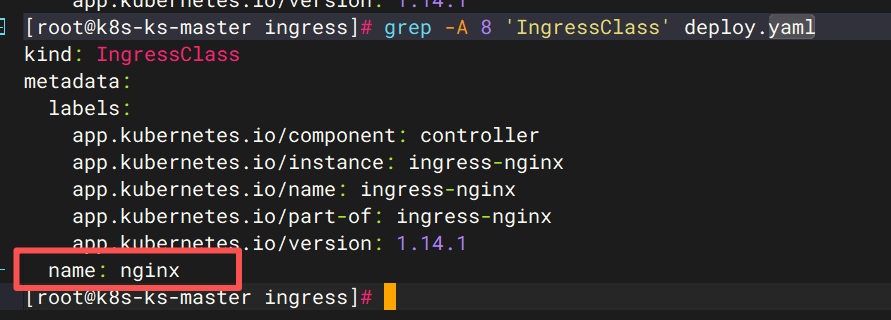

查看ingress-controller的class，通常不修改的话，默认是nginx
grep -A 8 'IngressClass' deploy.yaml
ingress-rule.yaml配置
cat > ingress-rule.yaml << EOF
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
#定义ingress的名称
name: dev-ingress
#ingress所在的命名空间，需要和后端服务一致
namespace: devops
spec:
#！！！加入到ingress-controller的class
ingressClassName: nginx
rules:
#统一入口的host，这里是自定义域名，需要写入到hosts文件里面
- host: mydevweb.local
http:
paths:
#需要转发到后端服务的前缀
- path: /
#前缀类型
pathType: Prefix
#后端svc配置，如名称、端口号
backend:
service:
name: dev-demo
port:
number: 8080
EOF
#应用
kubectl apply -f ingress.yaml
kubectl apply -f ingress.yaml
4.3 通过host访问后端
4.3.1 添加本地域名解析
linux添加解析
echo "172.16.10.200 mydevweb.local" >> /etc/hosts
windows添加解析，写入到本地bat，且用管理员权限运行
:: 写入实际的ip和host
set host=172.16.10.200 mydevweb.local
set tab=
set file=C:\Windows\System32\drivers\etc\hosts
echo.%tab% >> %file%
echo %host% >> %file%

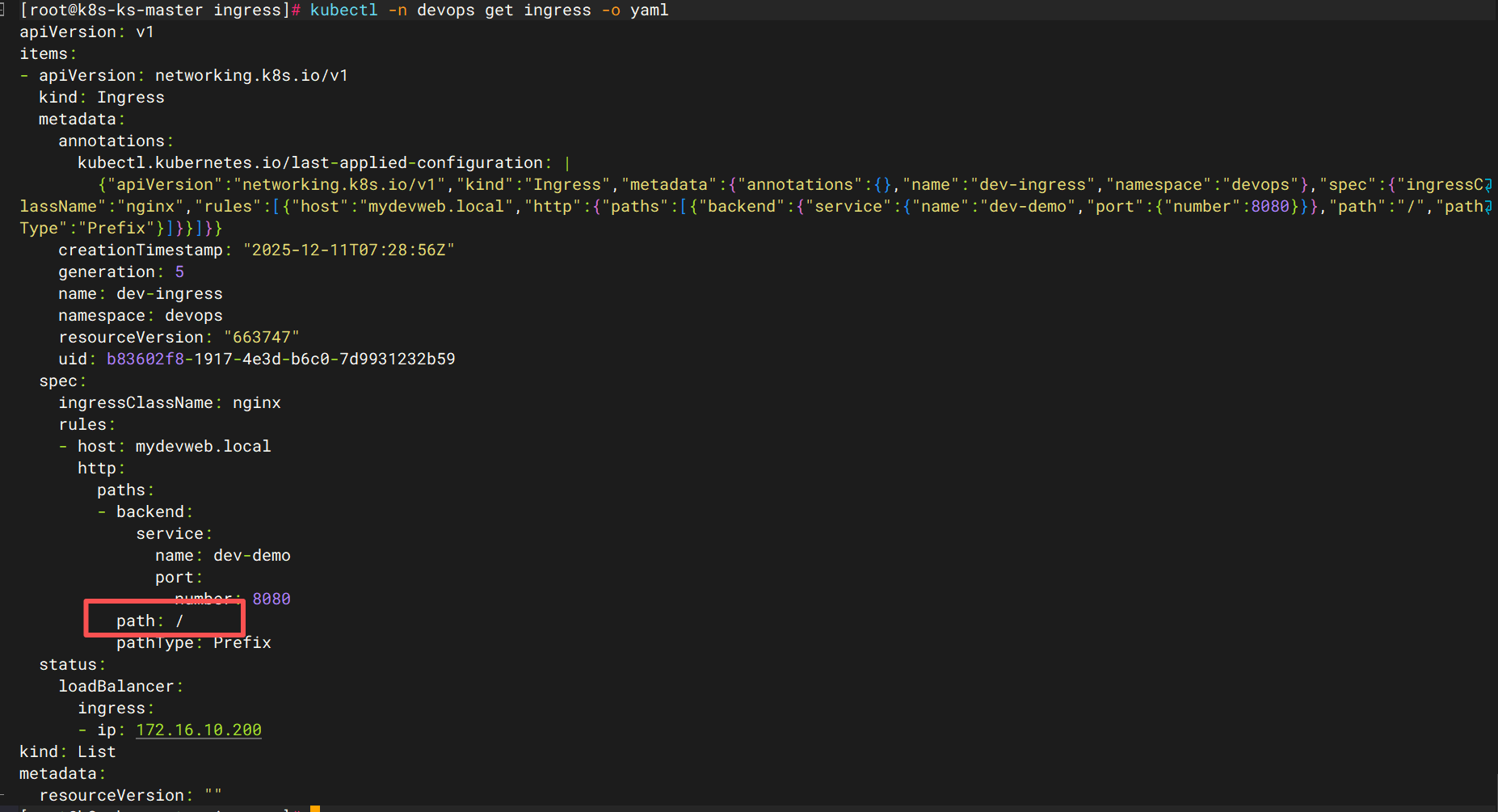

4.3.2 访问host
ingress不需要为每个api接口重复写host和 path。Ingress的设计初衷就是为了让你能够高效地管理这种场景。由此可以匹配到所有通用诸如此类/或/api的前缀

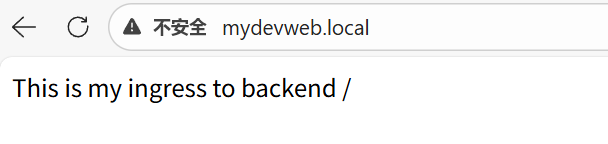

4.3.2.1 通用匹配 /

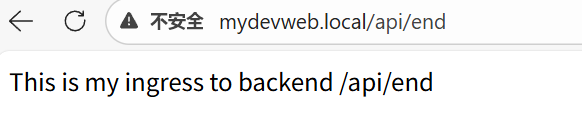

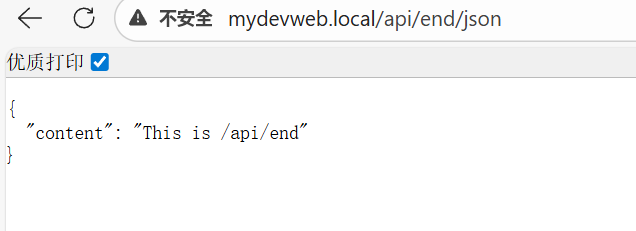

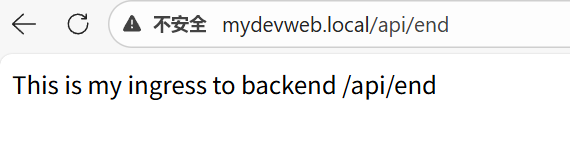

#示例，匹配存在/开头的所有前缀，访问示例如下
- path: /

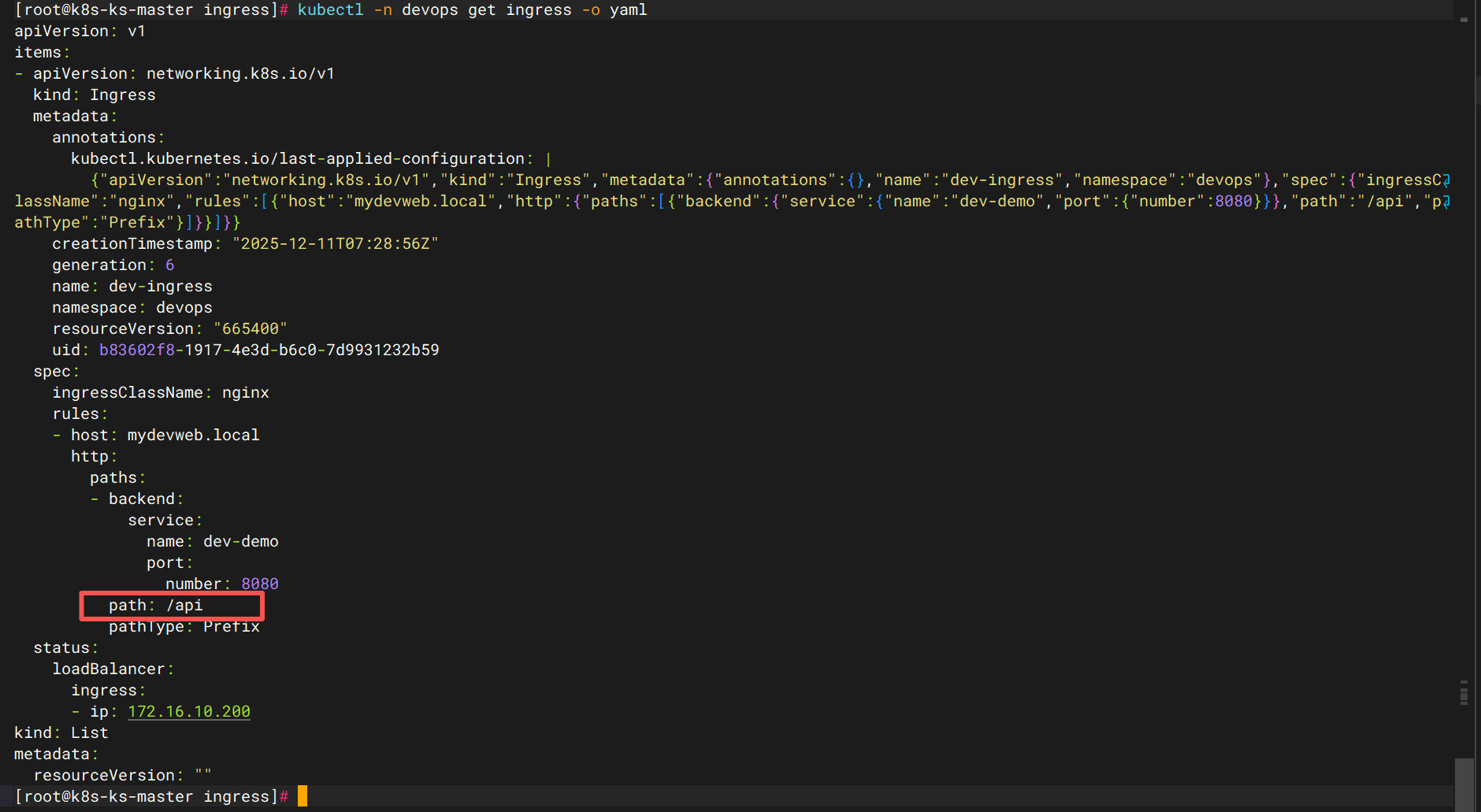

4.3.2.2 通用匹配/api
#示例
- path: /api

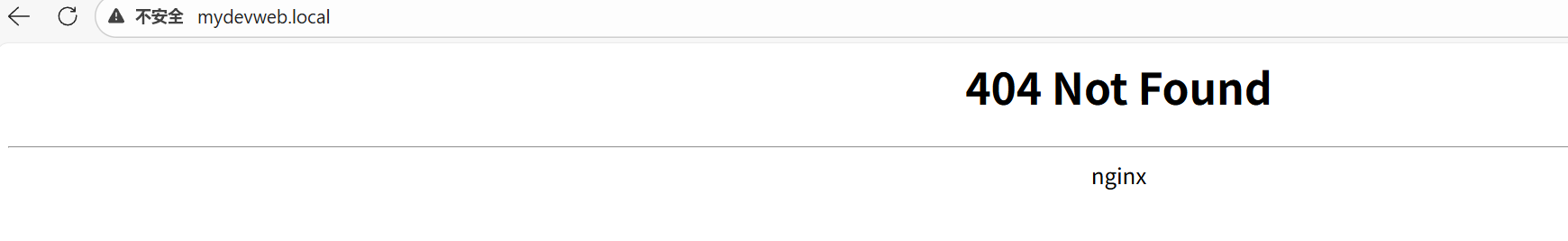

当匹配前缀/api，那么相对于同一个后端服务，带/前缀的就会匹配不了，正常就会404

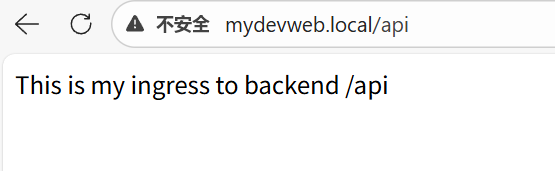

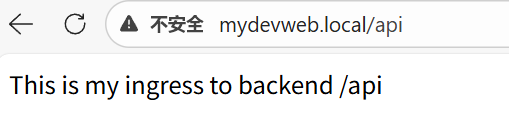

而/api前缀的则会不影响
4.3.2.3 ingress重写注解
cat > ingress-rule.yaml << EOF
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: dev-ingress
namespace: devops
#注解
annotations:
#所有path: /api的前缀均重写为/
nginx.ingress.kubernetes.io/rewrite-target: /
spec:
ingressClassName: nginx
rules:
- host: mydevweb.local
http:
paths:
- path: /api
pathType: Prefix
backend:
service:
name: dev-demo
port:
number: 8080
EOF

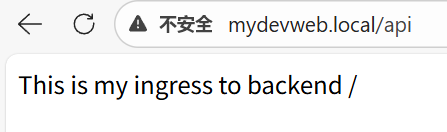

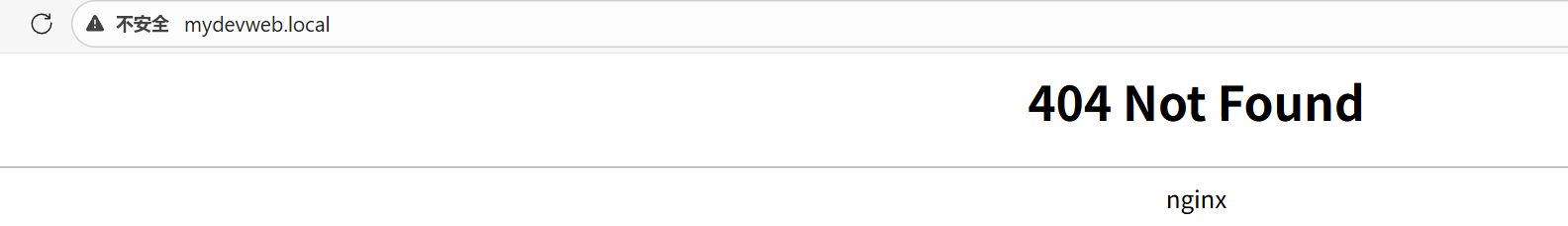

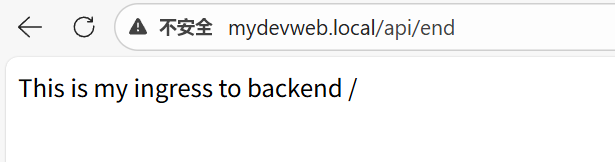

1、所有匹配/api的前缀都重写为匹配/，如果后端服务再存在/请求，相当于无/api，那么就会404了
2、其余无论前缀是什么，如/api，/api/end等，都默认重写到/
4.4 添加多条ingress规则
4.4.1 添加新hosts规则
1、通常一个后端服务会有多个api接口，而ingress也可以转发多个backend后端接口，如jenkins通过ingress规则暴露到外部
2、设置一个新的host，用于区别不同的后端服务--jenkins.mydevweb.local
cat > ingress-rule.yaml << EOF
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: dev-ingress
namespace: devops
spec:
ingressClassName: nginx
rules:
- host: mydevweb.local
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: dev-demo
port:
number: 8080
#这里填入jenkins的svc相关信息
- host: jenkins.mydevweb.local
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: jenkins-master
port:
number: 8080
EOF
4.4.1.1 添加本地域名解析
linux
echo "172.16.10.200 jenkins.mydevweb.local" >> /etc/hosts
windows
:: 写入实际的ip和host
set host=172.16.10.200 jenkins.mydevweb.local
set tab=
set file=C:\Windows\System32\drivers\etc\hosts
echo.%tab% >> %file%
echo %host% >> %file%

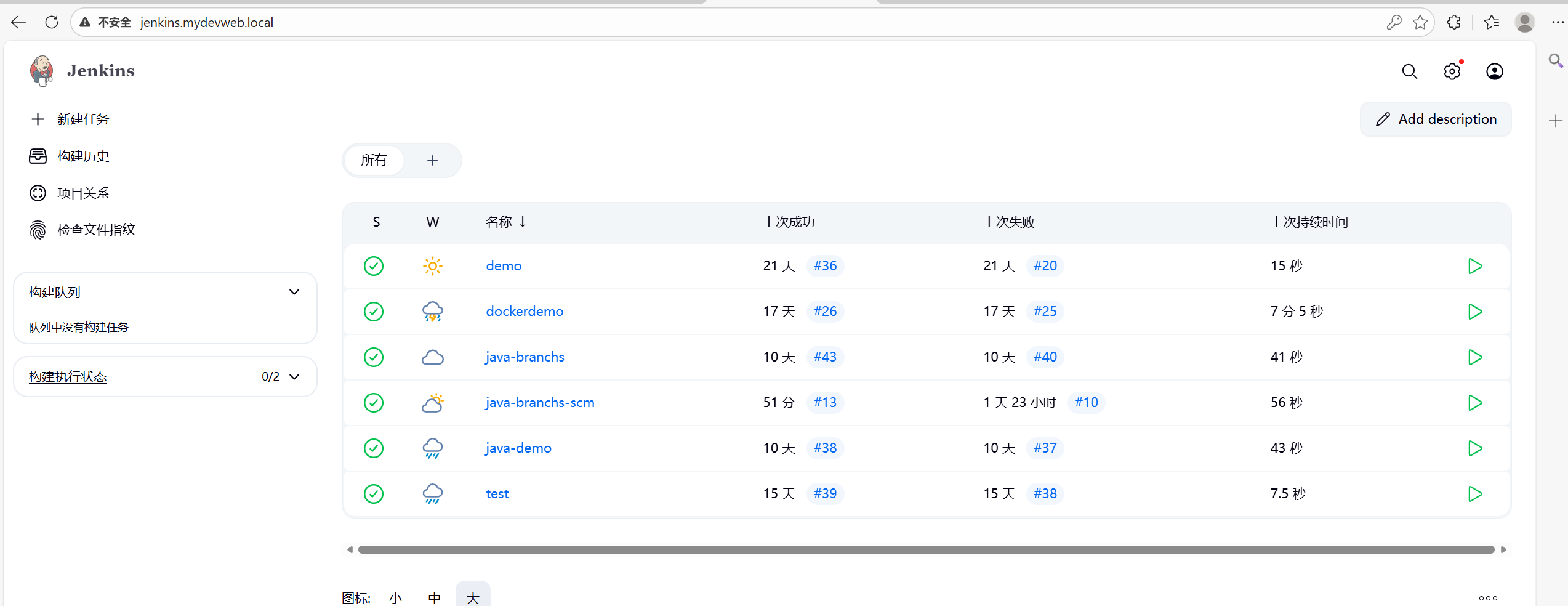

4.4.1.2 请求新host访问jenkins
请求成功
4.4.2 不添加host规则
缺点就是可能会与后端服务存在/前缀冲突，因为jenkins默认请求是/，如下我忽略dev-demo的/，只匹配/api和匹配jenkins的/，配置如下
cat > ingress-rule.yaml << EOF
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: dev-ingress
namespace: devops
spec:
ingressClassName: nginx
rules:
- host: mydevweb.local
http:
paths:
#dev-demo的svc信息和前缀
- path: /api
pathType: Prefix
backend:
service:
name: dev-demo
port:
number: 8080
#jenkins的svc信息和前缀
- path: /
pathType: Prefix
backend:
service:
name: jenkins-master
port:
number: 8080
EOF

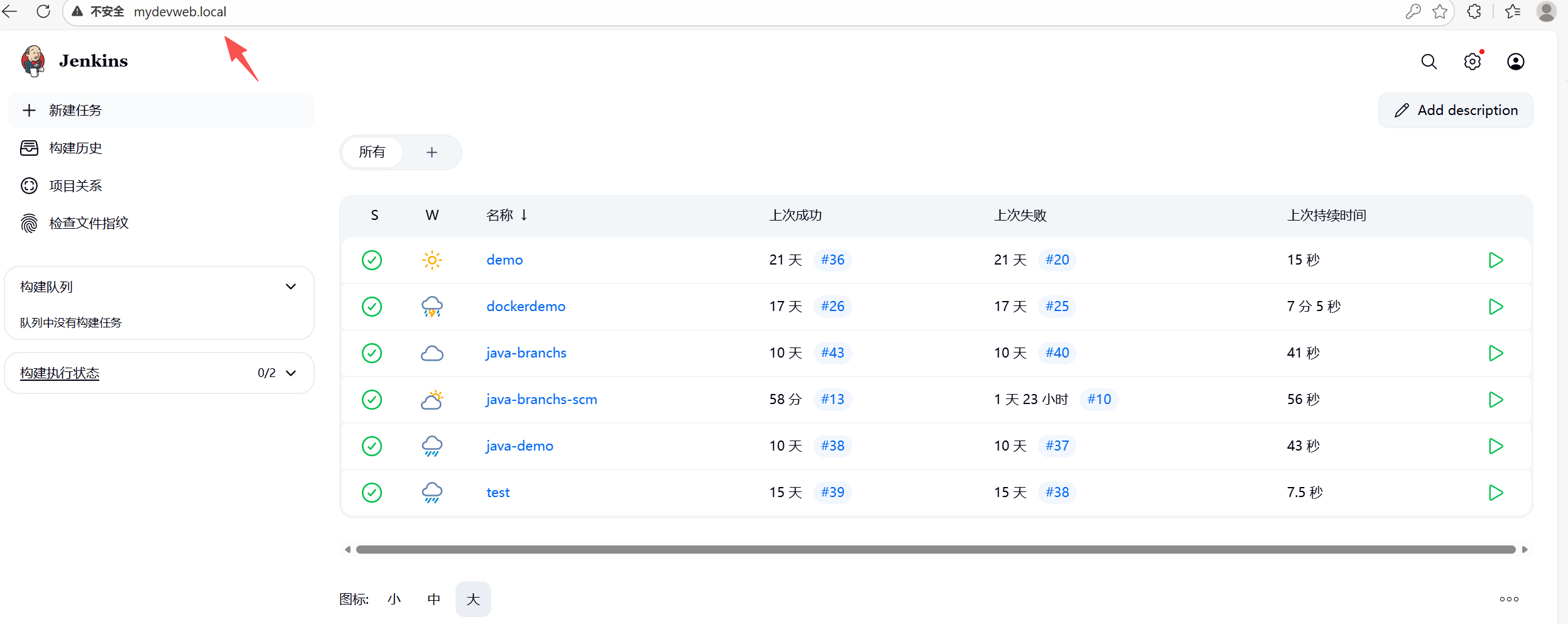

4.4.2.1 请求原host访问jenkins
