1、前言

2、GatewayApi部署

2.1 标准部署GatewayApi Crds

参考本文：标准部署GatewayApi Crds

2.2 部署envoy gateway

2.2.1 准备镜像

原镜像地址	修改镜像地址
docker.m.daocloud.io/envoyproxy/gateway:v1.6.1	ctr -n k8s.io images tag docker.m.daocloud.io/envoyproxy/gateway:v1.6.1 docker.io/envoyproxy/gateway:v1.6.1
docker.m.daocloud.io/envoyproxy/envoy:distroless-v1.36.3	ctr -n k8s.io images tag docker.m.daocloud.io/envoyproxy/envoy:distroless-v1.36.3 docker.io/envoyproxy/envoy:distroless-v1.36.3

链接：envoy

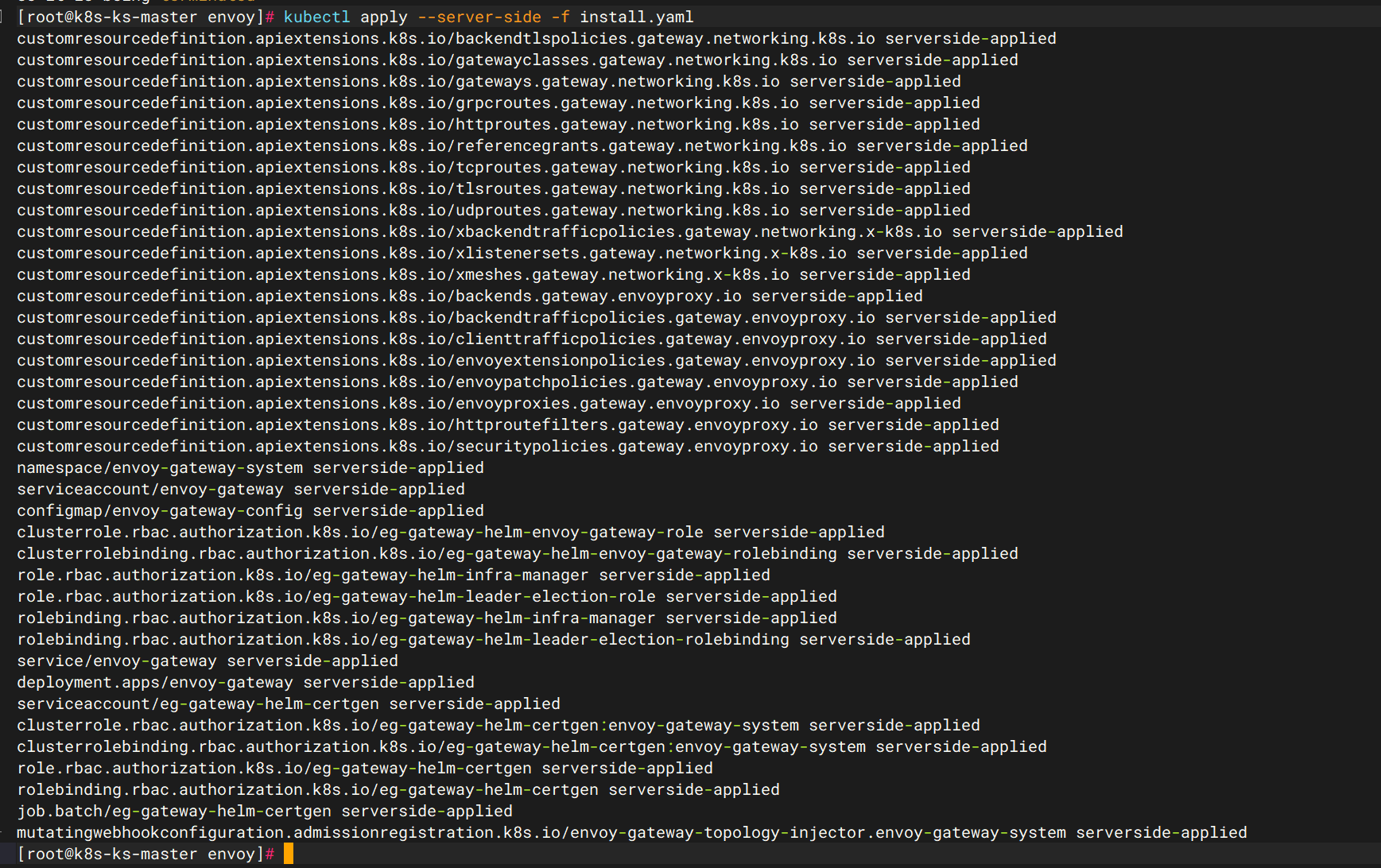

#规避资源过大的问题，用--server-side参数部署
kubectl apply --server-side -f install.yaml

查看deployment部署情况

2.2.2 创建一个命名空间

kubectl create ns eg-demo

2.2.3 创建gatewayclass

cat > gatewayclass.yaml << EOF
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: eg
  namespace: eg-demo               #命名空间
spec:
  controllerName: gateway.envoyproxy.io/gatewayclass-controller
EOF

2.2.4 创建gateway

cat > gateway.yaml << EOF
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: eg-gateway                #gateway名称
  namespace: eg-demo              #命名空间
spec:
  gatewayClassName: eg            #上面创建的gatewayclass的名称
  listeners:
    - name: http
      protocol: HTTP
      port: 80
EOF

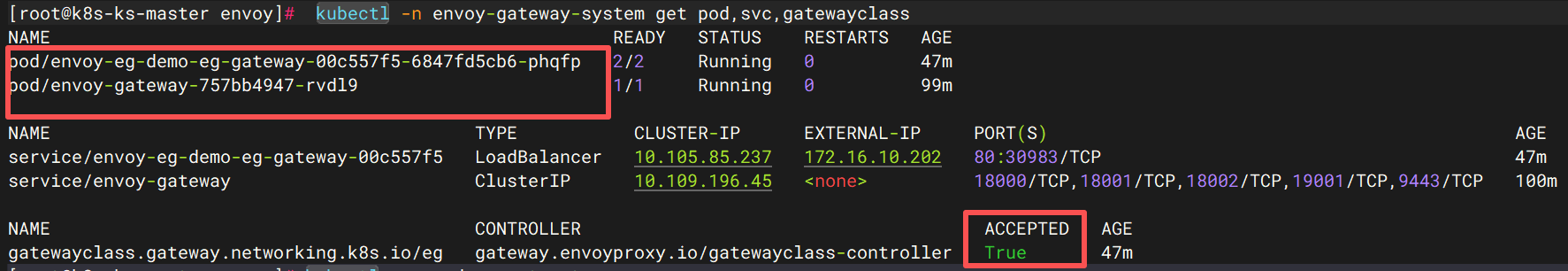

2.2.5 验证gateway相关服务

当pod全部起来，状态均为True代表envoy已经成功部署

kubectl -n envoy-gateway-system get pod,svc,gatewayclass

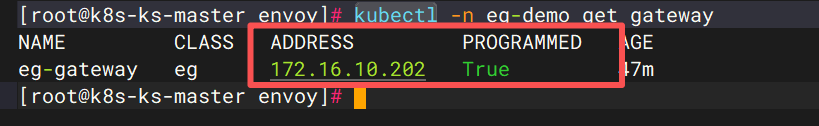

kubectl -n eg-demo get gateway

3、应用场景--金丝雀发布

3.1 部署deploy和svc

3.1.1 canary

cat > dev_canary.yaml << EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: dev-demo-canary
  namespace: eg-demo
spec:
  replicas: 1
  selector:
    matchLabels:
      app: dev-demo-canary
  template:
    metadata:
      labels:
        app: dev-demo-canary
    spec:
      containers:
        - name: dev-demo-canary
          image: harbor.test.com/java-dev/demo:Canary
      restartPolicy: Always
      dnsPolicy: ClusterFirst
---
apiVersion: v1
kind: Service
metadata:
  name: dev-demo-canary
  namespace: eg-demo
spec:
  selector:
    app: dev-demo-canary
  ports:
    - name: dev-demo-canary-8080
      protocol: TCP
      port: 8080
      targetPort: 8080
EOF

3.1.2 prod

cat > dev_prod.yaml << EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: dev-demo-prod
  namespace: eg-demo
spec:
  replicas: 1
  selector:
    matchLabels:
      app: dev-demo-prod
  template:
    metadata:
      labels:
        app: dev-demo-prod
    spec:
      containers:
        - name: dev-demo-prod
          image: harbor.test.com/java-dev/demo:Prod
      restartPolicy: Always
      dnsPolicy: ClusterFirst
---
apiVersion: v1
kind: Service
metadata:
  name: dev-demo-prod
  namespace: eg-demo
spec:
  selector:
    app: dev-demo-prod
  ports:
    - name: dev-demo-prod-8080
      protocol: TCP
      port: 8080
      targetPort: 8080
EOF

3.1.3 查看deploy和svc部署情况

kubectl -n eg-demo get pod,svc

3.2 基于流量比例发布

3.2.3 HTTProute规则

cat > httproute.yaml << EOF
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: http-route
  namespace: eg-demo         #指定Gateway所在的命名空间
spec:
  parentRefs:
    - name: eg-gateway
      sectionName: http
  hostnames:
    - "gatewayapi.demo.com"           #指定host
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /
      backendRefs:
        - name: dev-demo-canary       #写入后端service
          kind: Service
          port: 8080
          weight: 10
        - name: dev-demo-prod         #写入后端service
          kind: Service
          port: 8080
          weight: 90
EOF

3.2.4 验证金丝雀流量比例发布

for i in {1..10};do curl http://gatewayapi.demo.com ;sleep 1 ;echo -e ;done

流量比例符合预期

3.3 基于header发布

3.3.1 HTTProute规则

cat > httproute_header.yaml << EOF
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: http-route
  namespace: eg-demo         #指定Gateway所在的命名空间
spec:
  parentRefs:
    - name: eg-gateway
      sectionName: http
  hostnames:
    - "gatewayapi.demo.com"           #指定host
  rules:
    - matches:
      - headers:
        - name: x-canary              #定义header
          value: "true"
        path:                         #注意这里的path和headers同级
          type: PathPrefix
          value: /
      backendRefs:
        - name: dev-demo-canary       #写入后端service
          kind: Service
          port: 8080
    - matches:
      - path:
          type: PathPrefix
          value: /
      backendRefs:
        - name: dev-demo-prod         #写入后端service
          kind: Service
          port: 8080
EOF

3.3.2 验证header发布

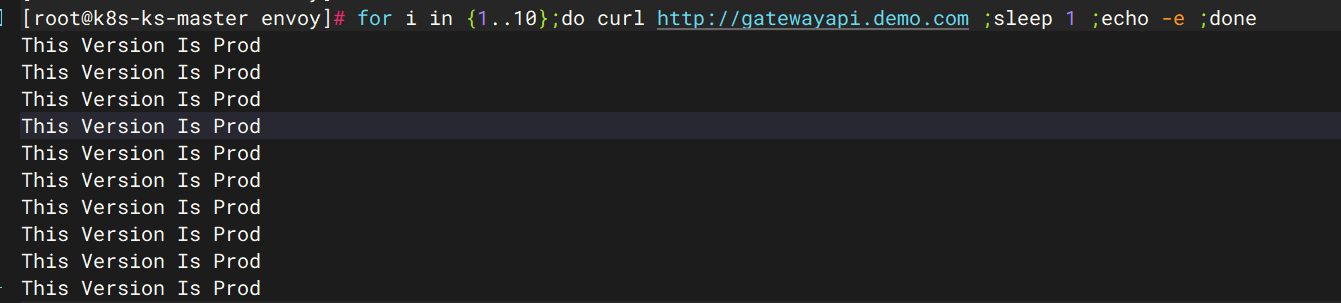

不带header

for i in {1..10};do curl http://gatewayapi.demo.com ;sleep 1 ;echo -e ;done

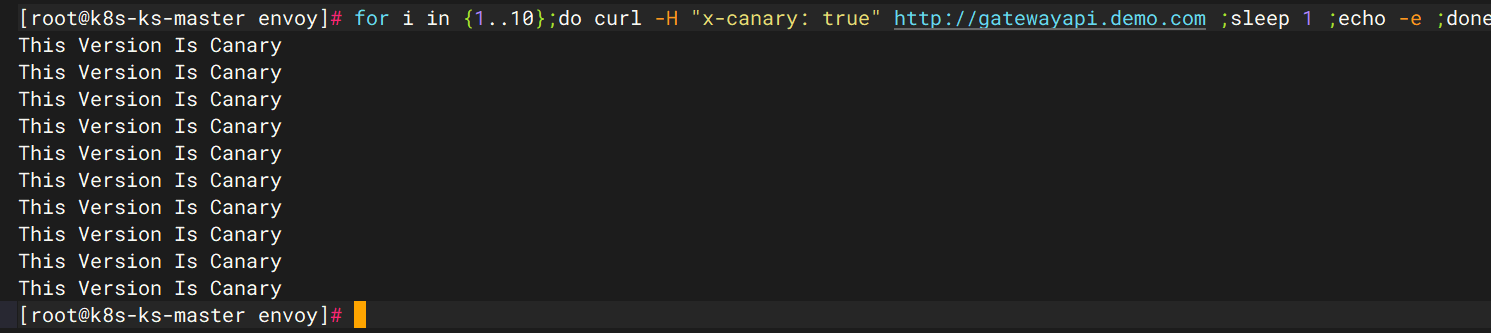

带有header

for i in {1..10};do curl -H "x-canary: true" http://gatewayapi.demo.com ;sleep 1 ;echo -e ;done
