1、HTTPS加密

1.1 创建mydevweb.local泛域名证书

参考文章：泛域名证书

1.2 创建ssl证书secret

 kubectl -n devops create secret tls mydevweb-secret --key mydevweb.local.key --cert mydevweb.local.crt

1.3 Ingress-rule指定该secret

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: dev-ingress
  namespace: devops
spec:
  ingressClassName: nginx
  ###新增tls的secret
  tls:
    - hosts:
      - mydevweb.local
      secretName: mydevweb-secret
  ###以上是tls配置
  rules:
  - host: mydevweb.local
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: dev-demo
            port:
              number: 8080
  - host: jenkins.mydevweb.local
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: jenkins-master
            port:
              number: 8080

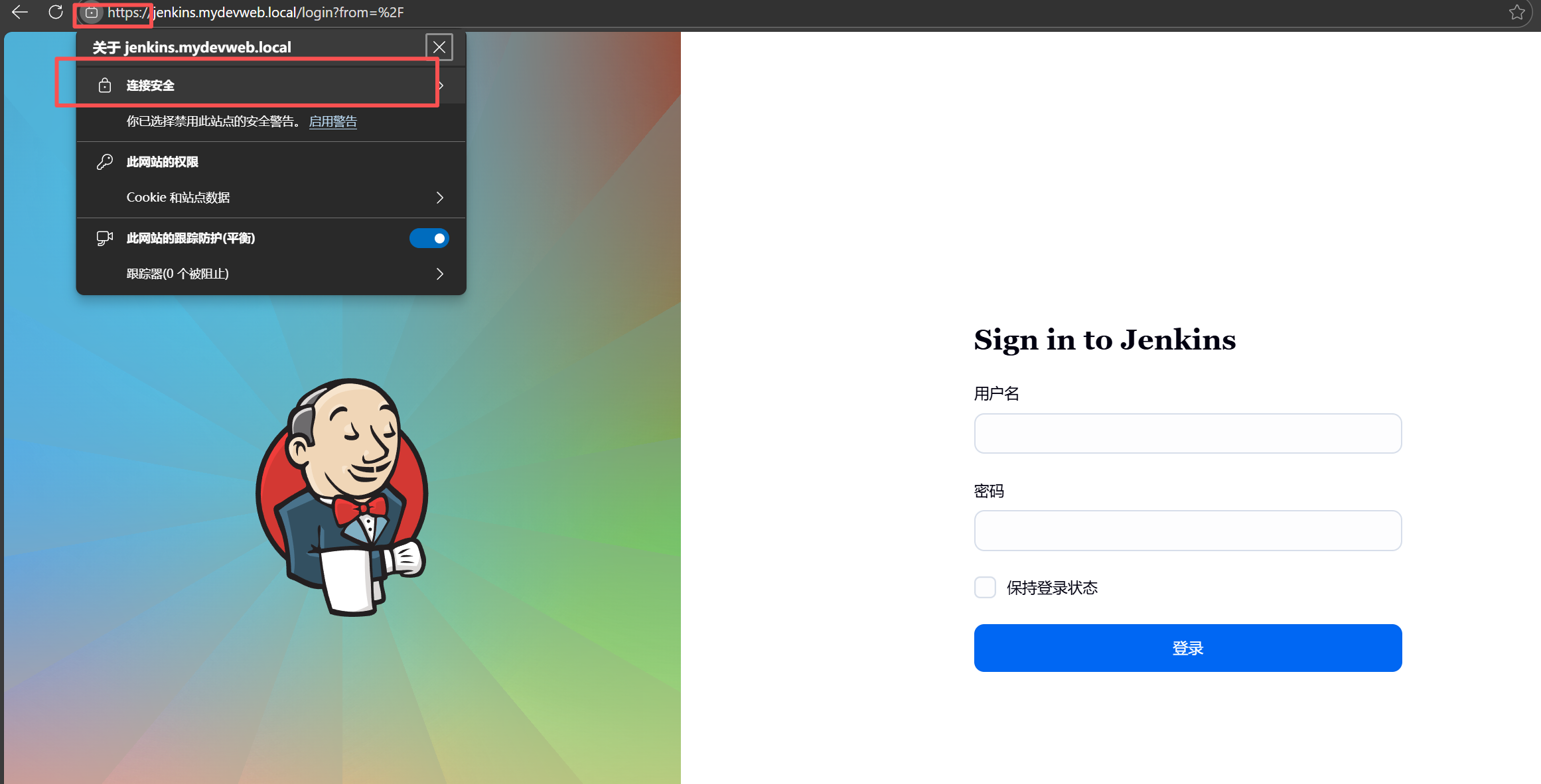

1.4 验证https

分别访问https://mydevweb.local和https://jenkins.mydevweb.local

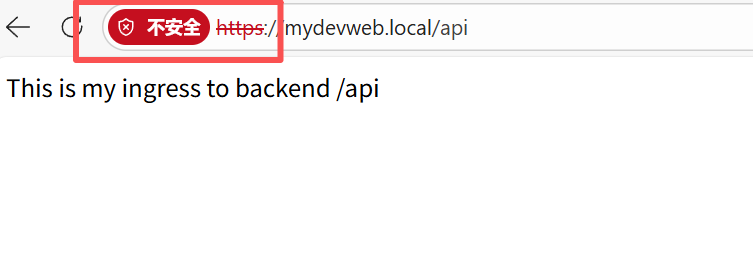

如果觉得不安全证书“显眼”，可以将其加入信任列表

参考文章：信任证书

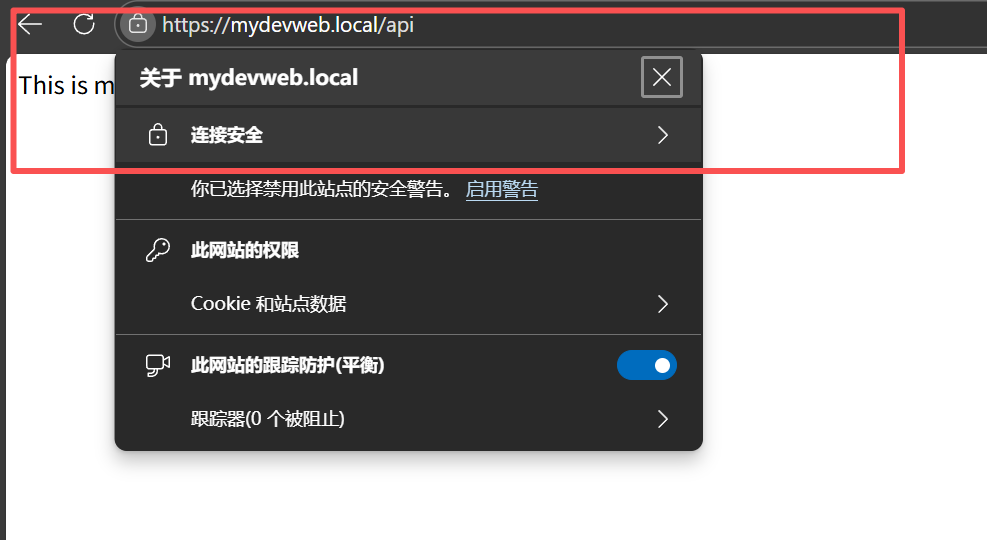

再次访问就是“安全”的证书了

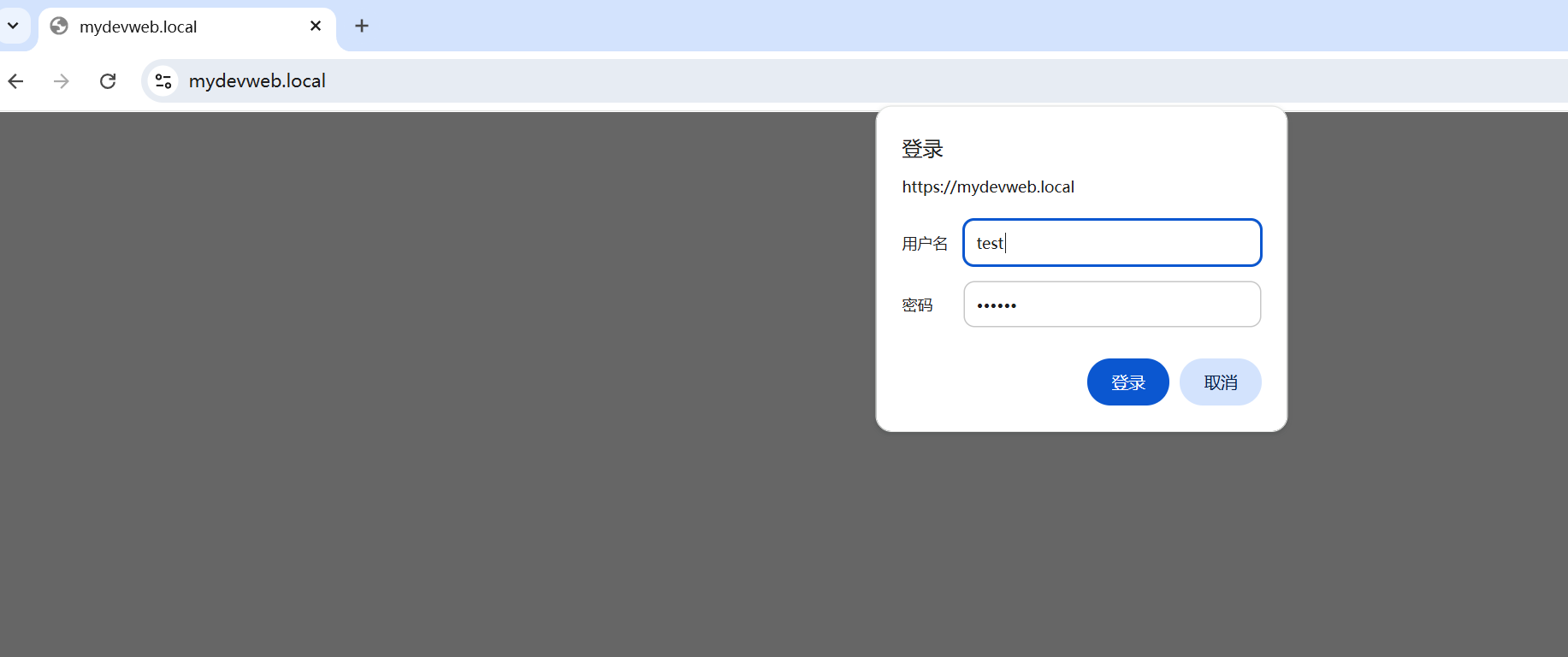

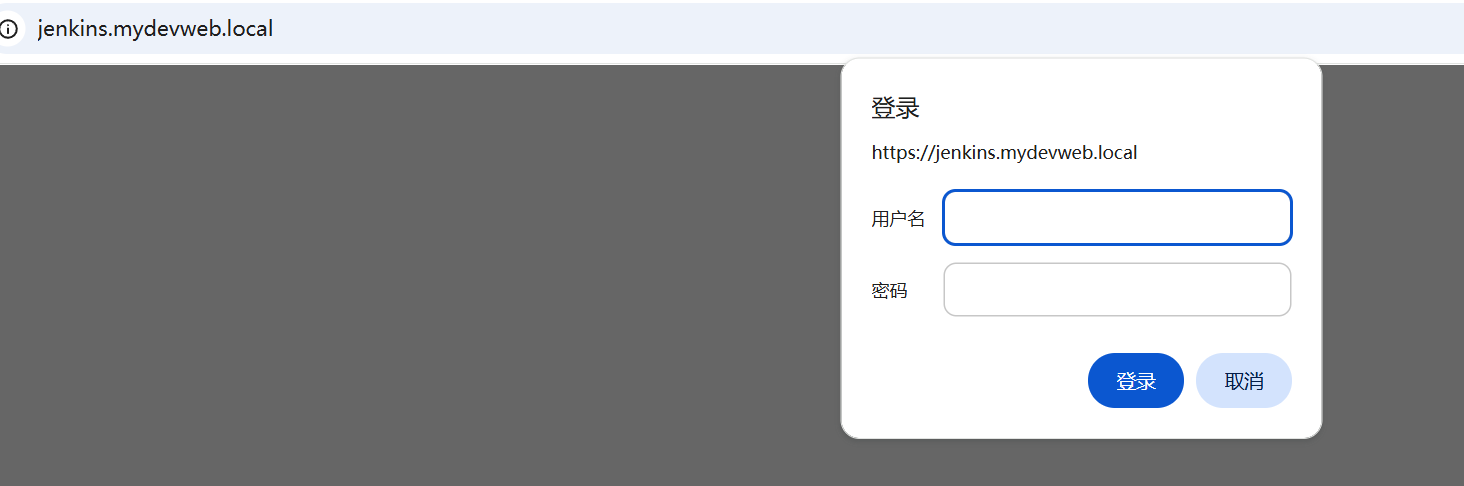

2、Basic Auth访问

2.1 httpd工具生成auth文件

yum install httpd-tools -y

#auth是认证文件，test是用户名
htpasswd -c auth test

kubectl -n devops create secret generic basic-auth --from-file=auth=auth

2.2 Ingress-rule指定basic-auth

cat > ingress-rule << EOF
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: dev-ingress
  namespace: devops
  annotations:
    ###添加basic注解
    nginx.ingress.kubernetes.io/auth-type: basic
    nginx.ingress.kubernetes.io/auth-secret: basic-auth
    nginx.ingress.kubernetes.io/auth-realm: "Authentication Required"
    ###以上为basic注解
spec:
  ingressClassName: nginx
  tls:
    - hosts:
      - mydevweb.local
      secretName: mydevweb-secret
  rules:
  - host: mydevweb.local
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: dev-demo
            port:
              number: 8080
  - host: jenkins.mydevweb.local
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: jenkins-master
            port:
              number: 8080
EOF
