1、需求

2、版本备注

2.1 环境镜像

镜像版本	deployment	备注
harbor.test.com/java-dev/demo:Canary	dev-demo-canary	假设是灰度版本
harbor.test.com/java-dev/demo:Prod	dev-demo	假设是正式版本

2.2 环境deployment

canary版本

apiVersion: apps/v1
kind: Deployment
metadata:
  name: dev-demo-canary
  namespace: devops
spec:
  replicas: 1
  selector:
    matchLabels:
      app: dev-demo-canary
  template:
    metadata:
      labels:
        app: dev-demo-canary
    spec:
      containers:
        - name: dev-demo-canary
          image: harbor.test.com/java-dev/demo:Canary
          volumeMounts: []
      volumes: []
      restartPolicy: Always
      dnsPolicy: ClusterFirst
---
apiVersion: v1
kind: Service
metadata:
  name: dev-demo-canary
  namespace: devops
spec:
  selector:
    app: dev-demo-canary
  ports:
    - name: dev-demo-canary-8080
      protocol: TCP
      port: 8080
      targetPort: 8080

Prod版本

apiVersion: apps/v1
kind: Deployment
metadata:
  name: dev-demo-prod
  namespace: devops
spec:
  replicas: 1
  selector:
    matchLabels:
      app: dev-demo-prod
  template:
    metadata:
      labels:
        app: dev-demo-prod
    spec:
      containers:
        - name: dev-demo-prod
          image: harbor.test.com/java-dev/demo:Prod
          volumeMounts: []
      volumes: []
      restartPolicy: Always
      dnsPolicy: ClusterFirst
---
apiVersion: v1
kind: Service
metadata:
  name: dev-demo-prod
  namespace: devops
spec:
  selector:
    app: dev-demo-prod
  ports:
    - name: dev-demo-prod-8080
      protocol: TCP
      port: 8080
      targetPort: 8080

3、Canary灰度发布

3.1 基于Header灰度发布

使用 nginx.ingress.kubernetes.io/canary 注解实现灰度流量控制。

3.1.1 prod的ingress-rule

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: dev-ingress-prod
  namespace: devops
spec:
  ingressClassName: nginx
  tls:
    - hosts:
      - mydevweb.local
      secretName: mydevweb-secret
  rules:
  - host: mydevweb.local
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: dev-demo-prod
            port:
              number: 8080

3.1.2 canary的ingress-rule

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: dev-ingress-canary
  namespace: devops
  ###canary的header注解
  annotations:
    nginx.ingress.kubernetes.io/canary: "true"
    nginx.ingress.kubernetes.io/canary-by-header: "Canary"
    nginx.ingress.kubernetes.io/canary-by-header-value: "true"
  ###以上是header注解
spec:
  ingressClassName: nginx
  tls:
    - hosts:
      - mydevweb.local
      secretName: mydevweb-secret
  rules:
  - host: mydevweb.local
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: dev-demo-canary
            port:
              number: 8080

注释

注解	作用
http://nginx.ingress.kubernetes.io/canary: "true"	表示此 Ingress 为灰度规则
http://nginx.ingress.kubernetes.io/canary-by-header	指定用于判断的 HTTP Header 名称
http://nginx.ingress.kubernetes.io/canary-by-header-value	指定 Header 的值，当匹配该值时流量进入 Canary

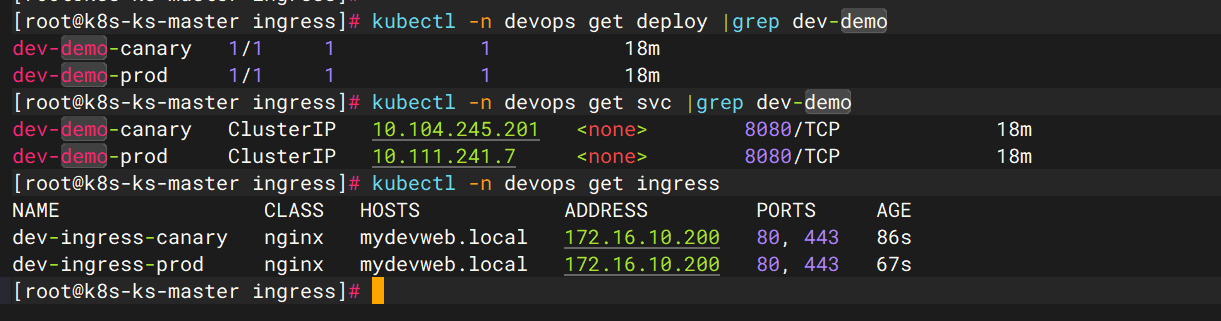

3.1.3 验证服务

kubectl -n devops get deploy |grep dev-demo
kubectl -n devops get svc |grep dev-demo
kubectl -n devops get ingress

普通用户场景访问

#-k忽略证书校验
curl -k https://mydevweb.local
#或
curl -k -H "Host: mydevweb.local" https://mydevweb.local

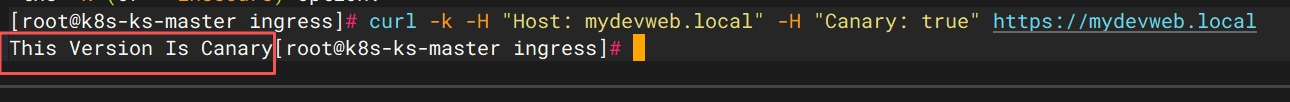

灰度用户访问

curl -k -H "Host: mydevweb.local" -H "Canary: true" https://mydevweb.local

3.2 基于Cookie灰度发布

3.2.1 prod的ingress-rule

不变

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: dev-ingress-prod
  namespace: devops
spec:
  ingressClassName: nginx
  tls:
    - hosts:
      - mydevweb.local
      secretName: mydevweb-secret
  rules:
  - host: mydevweb.local
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: dev-demo-prod
            port:
              number: 8080

3.2.2 canary的ingress-rule

注解内容有变

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: dev-ingress-canary
  namespace: devops
  ###canary的cookie注解
  annotations:
    nginx.ingress.kubernetes.io/canary: "true"
    nginx.ingress.kubernetes.io/canary-by-cookie: "Canary"
  ###以上是cookie注解
spec:
  ingressClassName: nginx
  tls:
    - hosts:
      - mydevweb.local
      secretName: mydevweb-secret
  rules:
  - host: mydevweb.local
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: dev-demo-canary
            port:
              number: 8080

注释

注解	含义
nginx.ingress.kubernetes.io/canary	标记为灰度规则
nginx.ingress.kubernetes.io/canary-by-cookie	指定 Cookie 名（这里是 Canary）

3.2.3 验证服务

灰度用户场景访问

curl -k -H "Host: mydevweb.local" -H "Canary: true" https://mydevweb.local
